Product Description

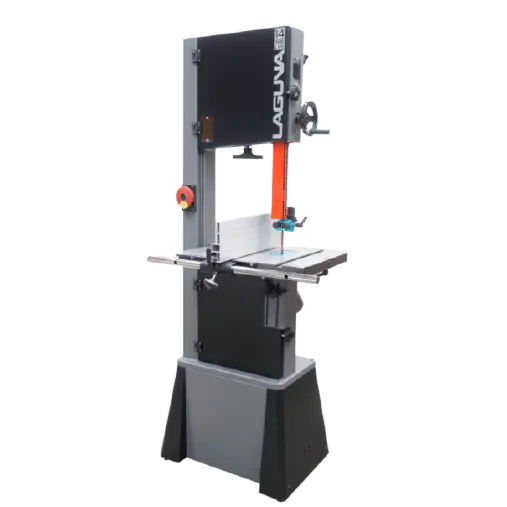

The 14/12 Bandsaw from Laguna Tools is a 110-volt saw that feels like a 220-volt. This machine features a pyramid shaped spine, a 1-3/4-hp TEFC motor, a quick-release tension, a 115-volt outlet and a micro polished 21″ x 16″ table mounted onto an oversized trunnion. The trunnion is also paired with an aluminum hi/low fence. The band saw’s solid cast wheels are electronically and dynamically balanced. They are also fitted with polyurethane one-piece tires which are built to run cooler & last longer than conventional tires. The worm gear & pinion is ultra-smooth and designed to have minimum flex even when fully extended. The incorporated double windows also let users check both tension & tracking while the machine is running.
Other Features:
Illuminated ON/OFF Switch
Safety Key
12″ Resaw
Premium Anodized Aluminum Throat Plate
Rack & Pinion Upper Guide
Quick-Release Tension
Includes:
Stand
6-ft Cord with Plug
Model Number: MBAND1412-175
Specifications
Table Tilt Right: 45°
Table Tilt Left: 7°
Positive Stop: 90°
Table Size: 21-1/2″ x 16″
Heavy Duty Cast Trunnion: 8″ x 13″
Nema: 5-15P
Hi/Low Aluminum Fence: 18″ x 5-1/2″ x 1/2″
Dual Voltage Motor: 115/230, Pre-Wired 115 Volt
Motor: 14/7 Amp TEFC
HP: 1-3/4, 115/230V
Blade Length: 115″
Min Blade Width: 1/8″
Max Blade Width: 3/4″
Shipping Weight: 350 lbs.
Shipping Dimensions: (L) 55” x (W) 22” x (H) 25”
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the Laguna MBAND1412-175 14 - Twelve Bandsaw. Read it before you buy it, or come back and download it if you have questions.
Laguna MBAND1412-175 14 - Twelve Bandsaw Instruction Manual
Warranty & Certifications
No Manuals available for this product
