Product Description

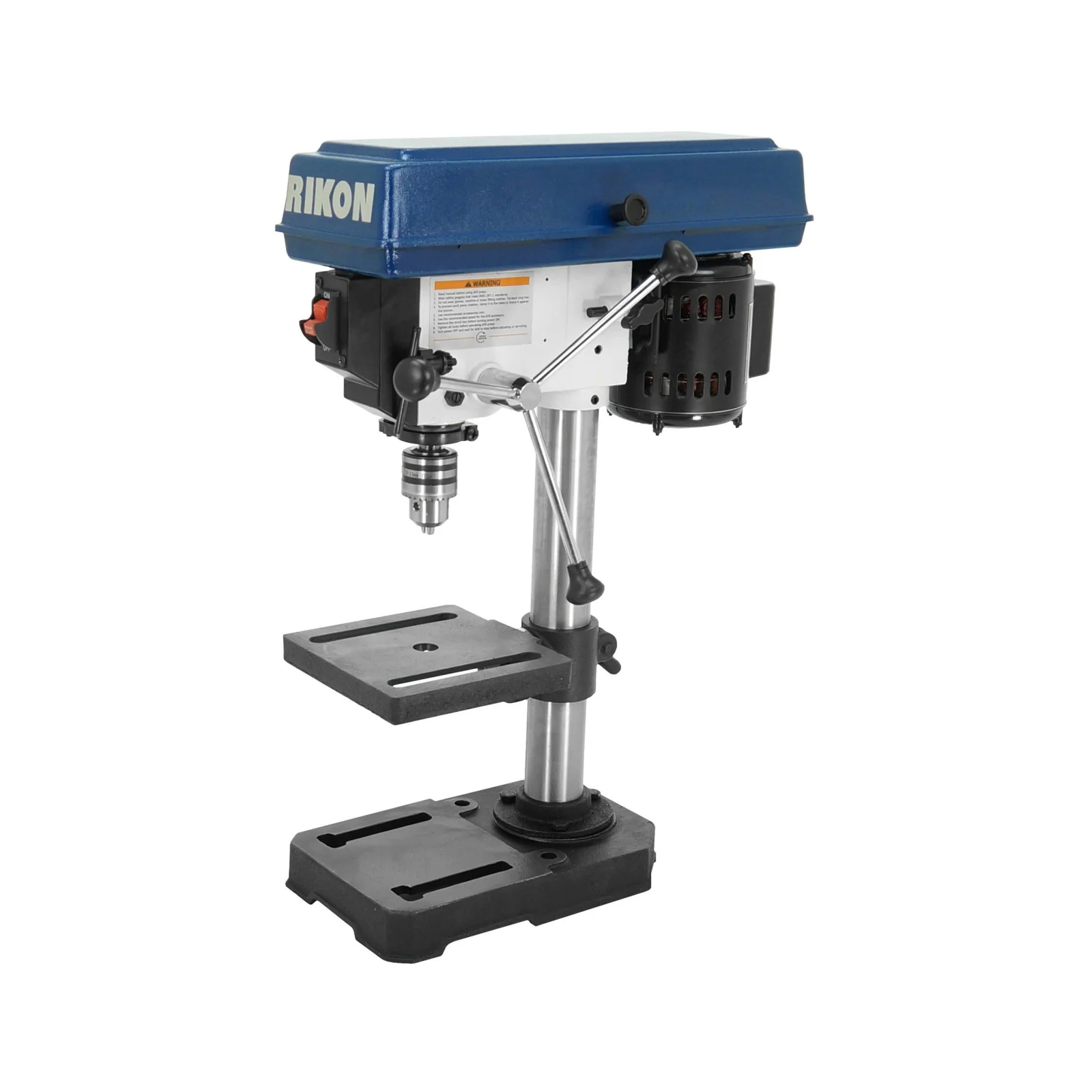

The RIKON 8″ Benchtop Drill Press is a compact machine that is ideal for hobbyists and craftspeople. This machine is great for smaller drilling projects that do not require a lot of power or capacity. The small overall size and weight of this machine also makes it great for transporting or storing.
Other Features:
5 Spindle Speeds – Ranging from 620-3,100 RPM
1/2" Chuck Holding Capacity
Solid Steel and Cast Iron Construction
Depth Stop
Cast Iron Table
Model Number: 30-100
Specifications
Motor
Horsepower: 1/3 HP
Amps: 2.5
Volts: 120V, 60Hz
RPM: 1,720
Swing: 8”
Chuck Size: 1/2”
Chuck Taper: JT33
Drilling Capacity: 1/2”
Spindle Travel: 2”
Spindle Taper: JT33
Head Rotates: 360°
Speeds: 5
Speed Range (RPM): 620 – 3,100
Quill Diameter: 1-1/2”
Table Dimensions
Table: 6-5/8” x 6-3/8”
Table Tilts: 90°
Table Rotates: 360°
Maximum Chuck to Table: 7-1/16”
Maximum Chuck to Base: 10-1/4”
Column Diameter: 1-7/8”
Overall
Height: 22-3/4”
Base Size: 11” x 7-1/8”
Net Weight: 32 lbs.
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the RIKON 30-100 8 In. Benchtop Drill Press. Read it before you buy it, or come back and download it if you have questions.
RIKON 30-100 8 In. Benchtop Drill Press Instruction Manual
