Product Description

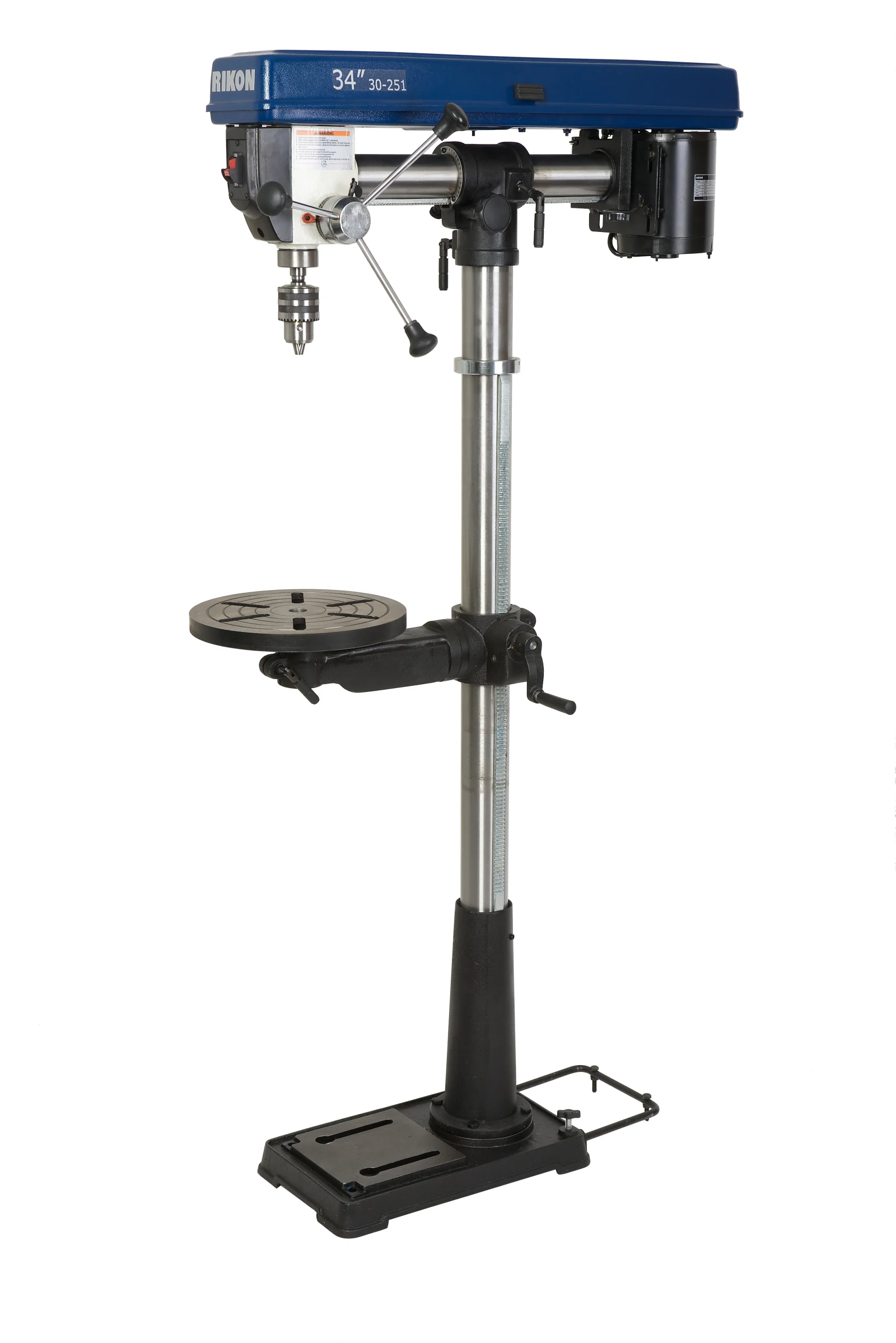

The RIKON #30-251 34-Inch Floor Radial Drill Press has the same great features as the bench model, but with larger components, added height and added capacities. It features a larger base, column, and table assemblies. For added versatility, the work table on this model is a round shape that can turn 360 degrees as well as tilt 45 degrees to the left and right.
Other Features:
- 1/3-HP Induction Motor – Provides plenty of power for drilling
- Head & Motor Assembly - Tilts left and right for special angle drilling
- Stepped Pulleys – Provide multiple spindle speed choices
- Rack & Pinion Design – Makes adjustments of table and head assembly easy
- Keyed Chuck – Holds drill bits and accessories tight
- 3 Feed Handles with Comfortable Knobs – Provide excellent control when drilling
- Heavy Cast Iron Base – Has slots for attaching jigs or fixtures
- Tilt-able Table – Easily moves up or down along the column for best positioning
Model Number: 30-251
Specifications
- Motor Horsepower: 1/3 HP TEFC
- Motor Amps: 5.5
- Motor Volts: 120V, 60Hz
- Motor RPM: 1720
- Swing: 34”
- Chuck Size: 5/8”
- Chuck Taper: JT3
- Drilling Capacity: 5/8”
- Spindle Travel: 3-1/8”
- Spindle Taper: MT2
- Head Rotates: 360°
- Head Tilts: 45° Right, 90° Left
- Speeds: 5
- Speed Range (RPM): 620 ? 3,100
- Quill Diameter: 2-3/16”
- Table Dimensions: 11-3/16” Round
- Table Tilts: 90°
- Table Rotates: 360°
- Maximum Chuck to Table: 28-3/8”
- Maximum Chuck to Base: 47-3/4”
- Column Diameter: 2-7/8”
- Overall Height: 64”
- Overall Base Size: 18” x 10-1/2”
- Overall Net Weight: 120 lbs.
