Product Description

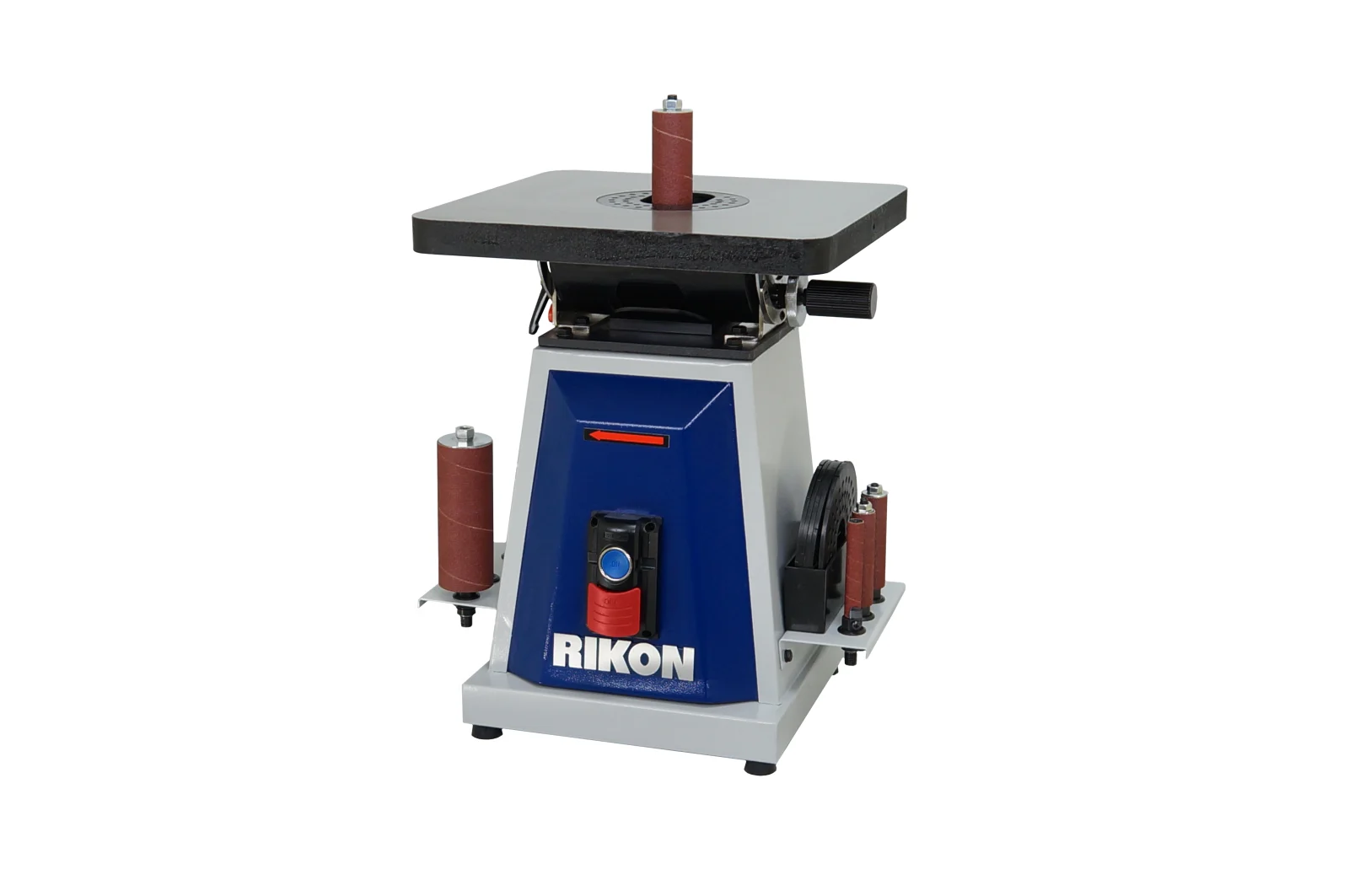

Oscillating Spindle Sander #50-300 is a specialized sander for the fast and accurate sanding of curved board edges. Abrasive sleeves mounted on the machine's spindles oscillate up-and-down 15/16", 29 time per minute while the spindle spins, providing more efficient abrasive cutting action. Powerful 1/2 HP motor, all steel gearing, ample cast iron tilting table, metal housing and 5 spindle diameters (1/2" - 2") with 6 table inserts make this a valuable machine for every shop. 4-1/2" long abrasives. Weighd 76 lbs!
Specifications
- Oscillating Spindle Sander #50-300 is a specialized sander for the fast and accurate sanding of curved board edges. Abrasive sleeves mounted on the machine's spindles oscillate up-and-down 15/16", 29 time per minute while the spindle spins, providing more efficient abrasive cutting action. Powerful 1/2 HP motor, all steel gearing, ample cast iron tilting table, metal housing and 5 spindle diameters (1/2" - 2") with 6 table inserts make this a valuable machine for every shop. 4-1/2" long abrasives. Weighd 76 lbs!
- 1/2 HP motor with all steel gearing provides excellent power for sandling
- Machined, cast iron table measures a big 14-3/4" x 14-3/4" and tilts from 0 degrees to 45 degrees for sanding angled surfaces
- Includes 5 spindle diameters - 1/2", 3/4", 1", 1-1/2" and 2". Each is 4-1/2" long.
- Spindles oscillate up-and-down 15/16", 29 times per minute for efficient abrasive cutting action.
- Optional 3" diameter spindle is available for sanding big arcs or circles in projects.
- Includes a standard 50mm (1-3/4" I.D. or 2" O.D.) dust port for use with dust collectors.
- Machine measures only 19" from its base to the table, making it perfect for benchtop use.
- Includes 6 table inserts to match the spindle diameters used.
