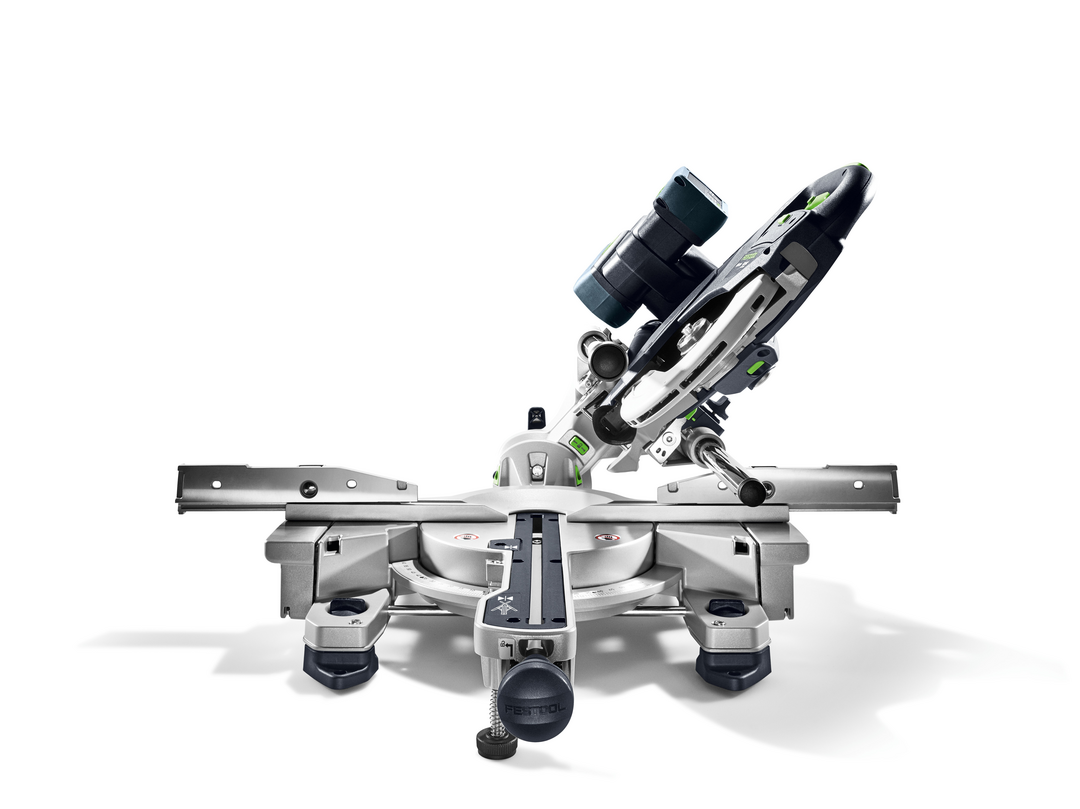

Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw

  • SKU T577176
In Stock & Ready to Ship
Check In-Store Availability

FREE Shipping on all Festool items!  Click here for details>

Product Description

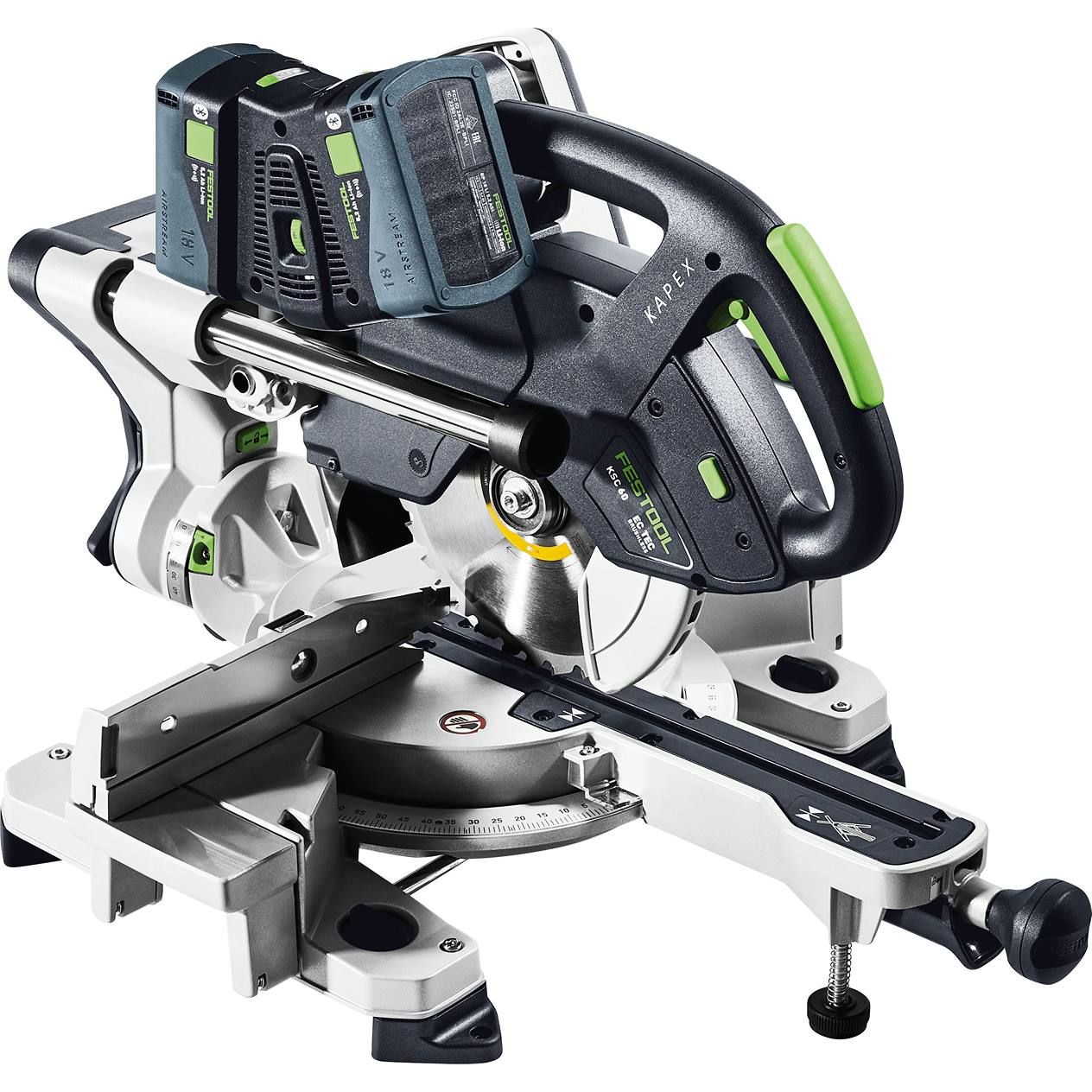

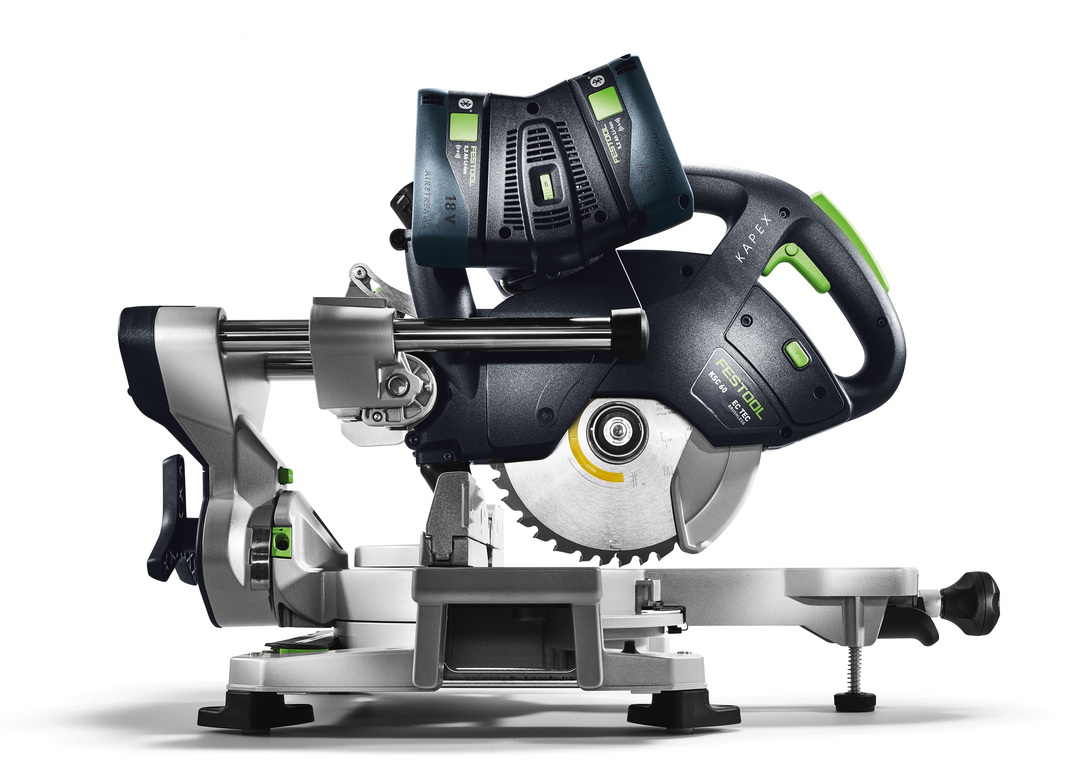

Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw. Produce unbeatably precise cross cuts, in an enormous range of applications, with miter angles of up to 60° on each side and bevel angles of up to 47° on each side. The twin-column guide with two bearings ensures that the saw blade is guided smoothly and with precision at whatever setting is chosen. This makes every cut with the 8-1/2" blade perfect, without wobble or deflection.

In conjunction with the dual battery system, the brushless EC-TEC motor provides virtually unlimited endurance and is enough for all typical applications for an entire day's work. And finally, clever details such as the variable speed, central controls so it can be used by both right and left handed users, a grooving function, saw blades for every application, bevel, ergonomic underframe, and a dust bag create the ultimate experience in precision, durability, and performance. Germany

Key Features
Precise: LED spotlight highlights the cut line and provides optimal visibility of the scribe mark

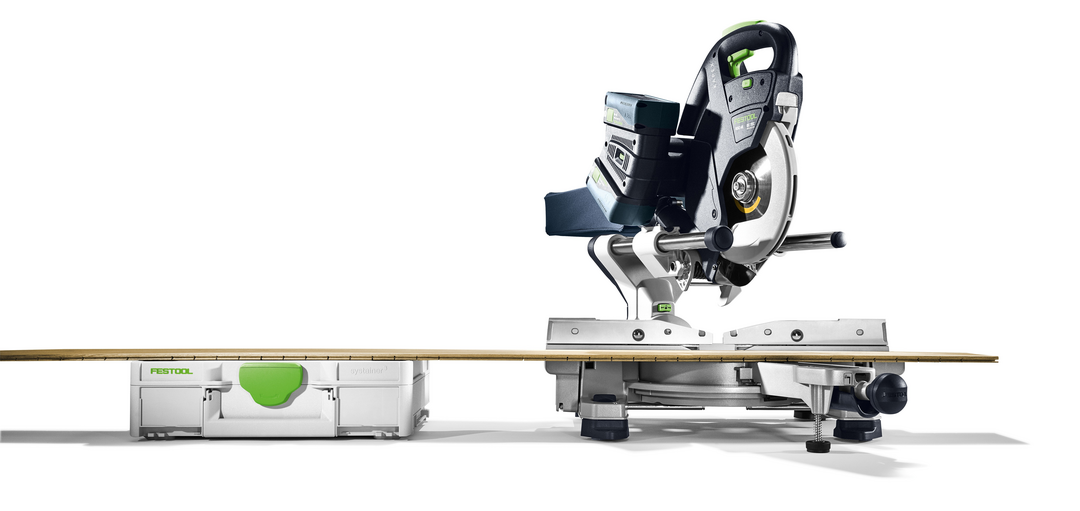

Clever: The additional feet increase the height of the work table on the KSC 60 to precisely match the height of an SYS 3 M 112 or SYS 1 Systainer. Provides extra support for long pieces when working on the floor or a large table surface.

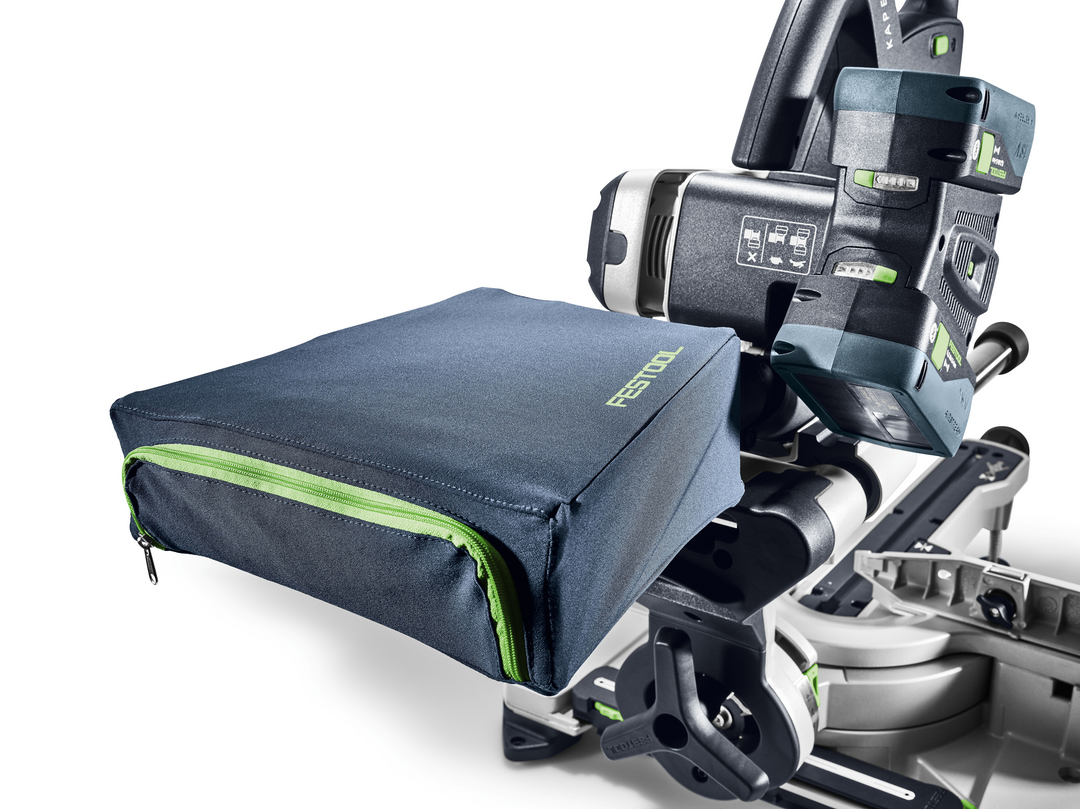

Low-dust work: The collection bag conveniently captures dust, even without a mobile dust extractor

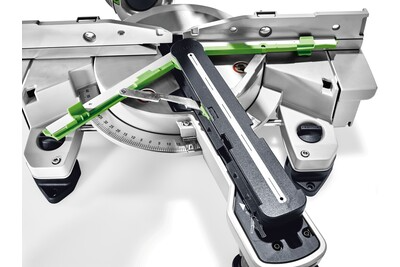

Easy: Angle transfer device captures interior and exterior angles and transfers them to the saw

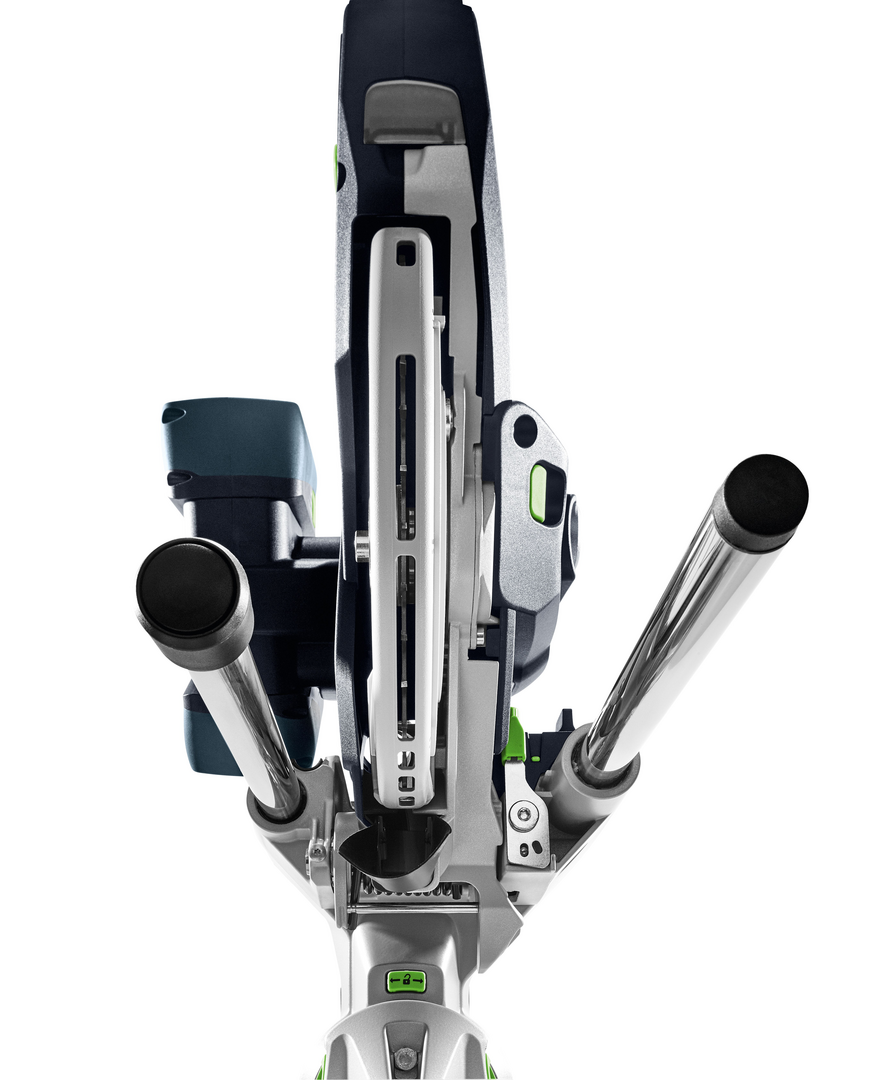

Precise: Twin-column guide with two bearings ensures the saw blade is guided smoothly and precisely

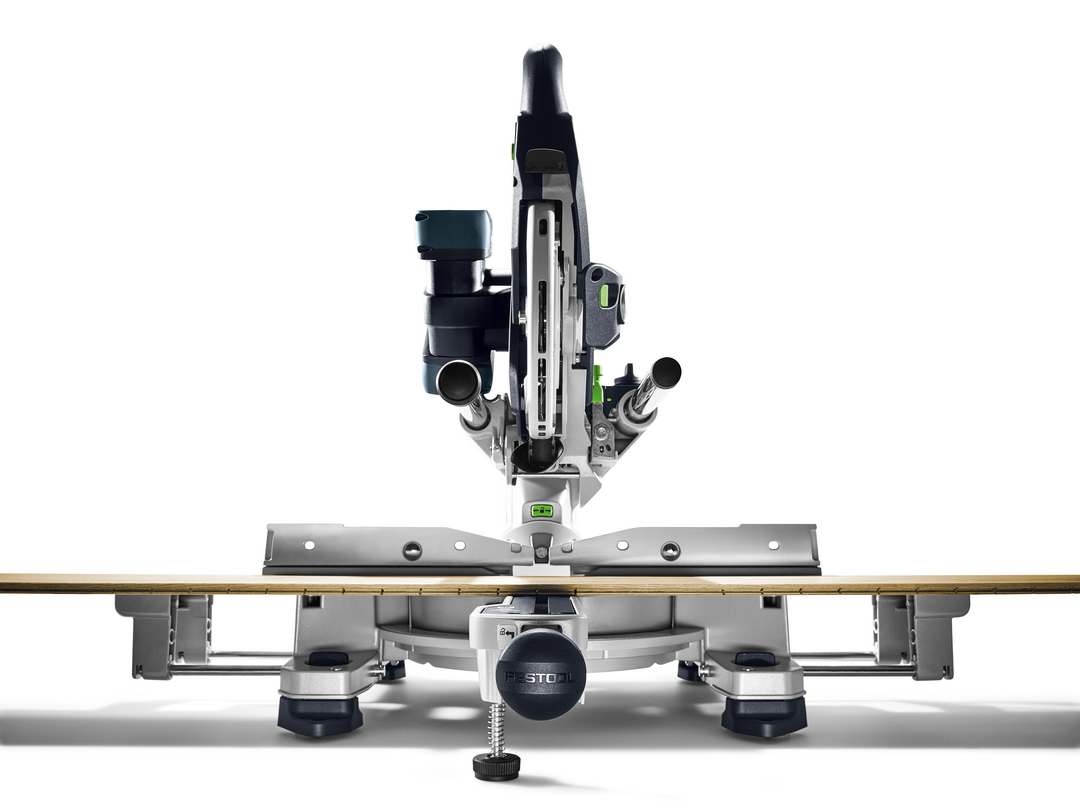

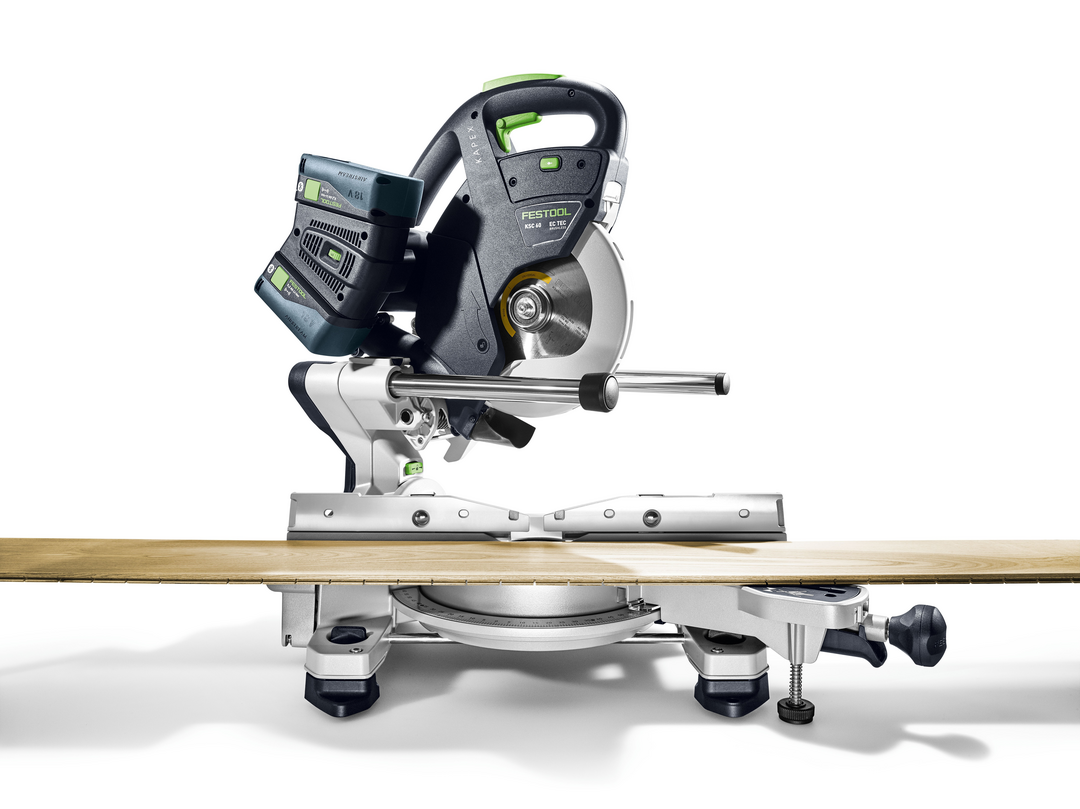

Flexible: Extension table brings stable support to longer work pieces

Versatile: Miter angles of up to 60° on each side and bevel angles of up to 47° on each side

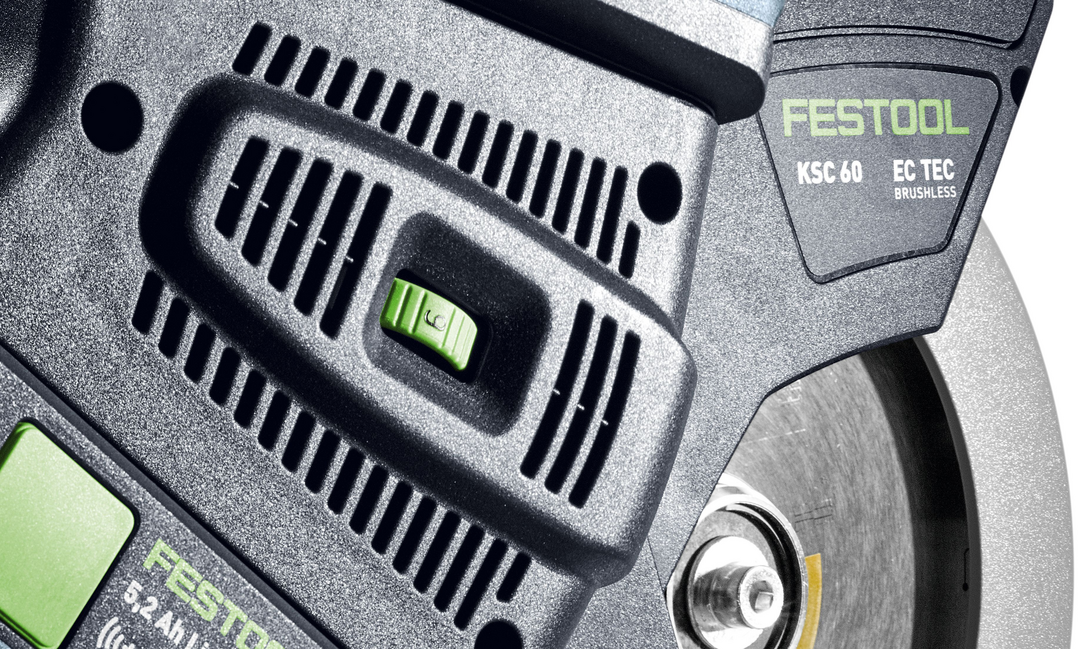

Long-lasting: The combination of the brushless EC-TEC motor and dual battery system delivers maximum power

Mobile: Low weight, compact design, convenient handles

Work appropriately for the material: Saw blades are available for every material, and the saw's variable speed to adapts to the material

KAPEX KSC 60 Plus Includes: KSC 60 saw; 5.0 Ah energy set (includes two 5.0 Ah batteries and a TCL 6 DUO rapid charger, all in a SYS3 Systainer); HW universal saw blade W 36; 4-11/16" screw clamp; LED spotlight; angle transfer device; elevation feet; chip collection bag; and WAF 6 hex key.

Model: 577176

Specifications

Battery Voltage: 18/36 V
Idle Engine Speed: 1300 - 1800/3500 RPM
Saw Blade Diameter: 8-1/2" (216 mm)
Cutting Depth at 90°/90°: 12" x 2-3/8" (305 x 60 mm)
Cutting Depth at 45°/90°: 8-15/32" x 2-3/8" (215 x 60 mm)
Cutting Depth 45°/45° (left): 8-15/32" x 1-9/16" (215 x 40 mm)
Cutting Depth 45°/45° (right): 8-15/32" x 25/32" (215 x 20 mm)
Inclination Angle: 47/46°
Miter Angle: 60/60°
Cutting Depth: 60°/90° 5-29/32" x 2-3/8" (150 x 60 mm)
Dimensions (L x W x H): 25-5/32" x 18-1/16" x 17-13/32" (639 x 459 x 442 mm)
Dust Extraction Connection Diameter: 1-1/16" / 1-2/5" (27/36 mm)
Battery Capacity: 5.2 Ah
Weight: 1 x 18 V/2 x 18 V 37.69/40.78 lbs (17.8/18.5 kg)

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw home.

Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw User Guide

Warranty & Certifications

Festool offers and all-inclusive warranty on all their tools.

3-Year Comprehensive Warranty Coverage - including wear and tear!
3-Year free shipping to and from Festool service department.
10-Year spare parts availability guarantees long-term support.
1-Month money back guarantee.
