Product Description
While Supplies Last - Get this Limited Edition KSC 60 EB 5.0-I-Plus + UG Set for $2065. A $232 value, compared to purchasing separately!
In conjunction with the dual battery system, the brushless EC-TEC motor provides virtually unlimited endurance and is enough for all typical applications for an entire day‘s work. Clever details such as the variable speed, saw blades for every application, bevel, ergonomic underframe and dust bag create the ultimate experience in precision, durability, and performance!
Features: - LED spotlight for highlighting the cutting line and optimal visibility of the scribe mark
Clever - The additional feet increase the height of the KSC 60 worktable to exactly match the height of a SYS 3 M 112 or SYS 1 Systainer, providing extra material support

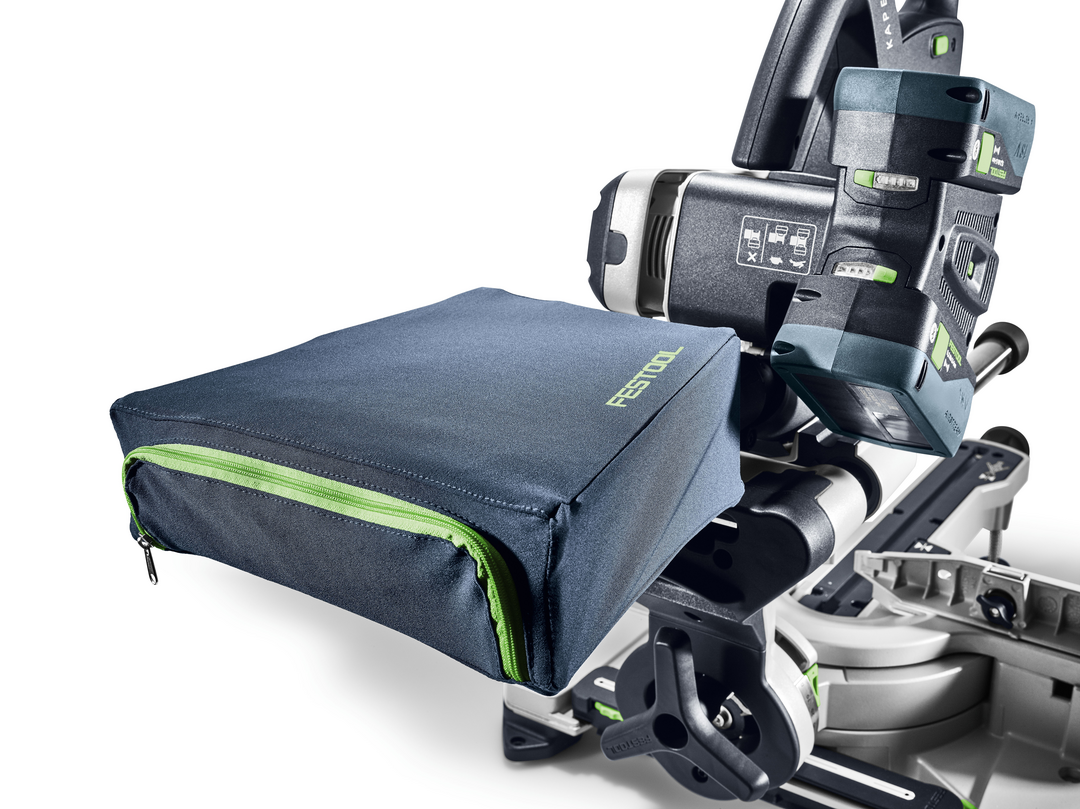

Low-Dust Work – Includes a collection bag for convenient dust capture, even without a mobile dust extractor

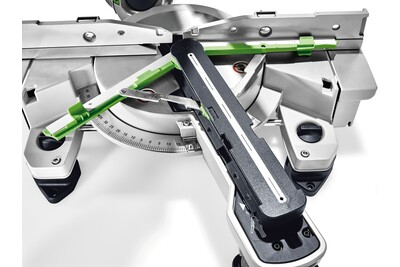

Easy - Bevel Gauge for capturing and transferring interior and exterior angles

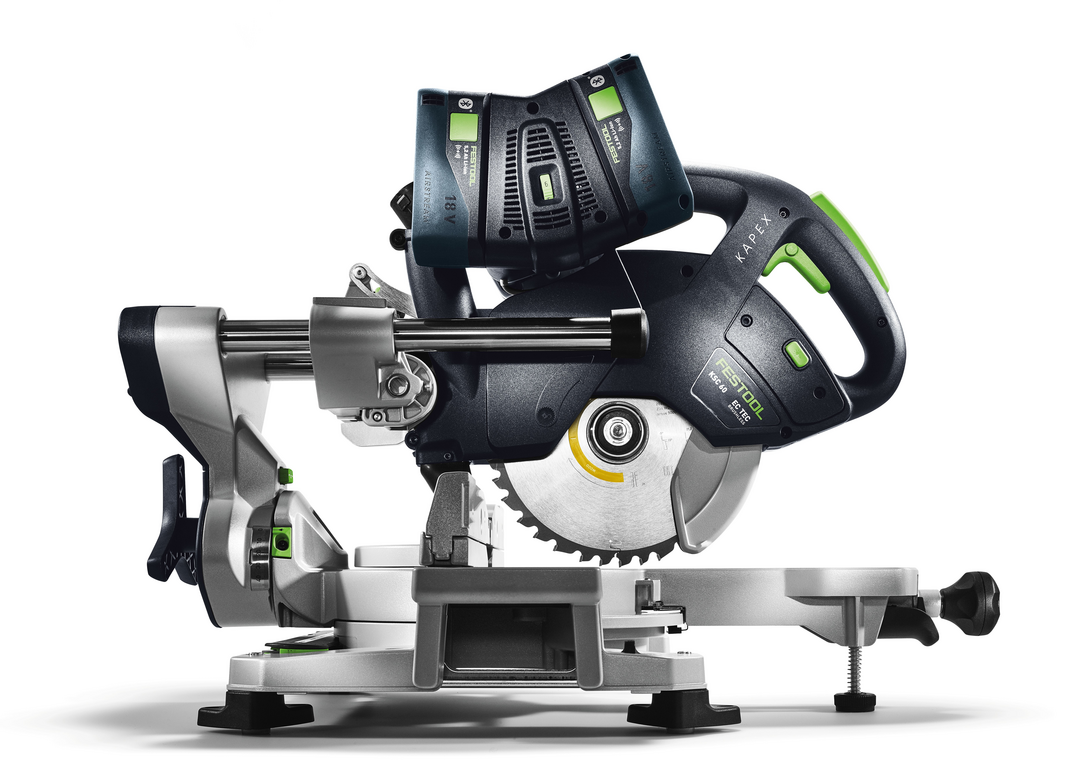

Precise - Twin-column guide with two bearings ensure saw blades are guided smoothly and with precision

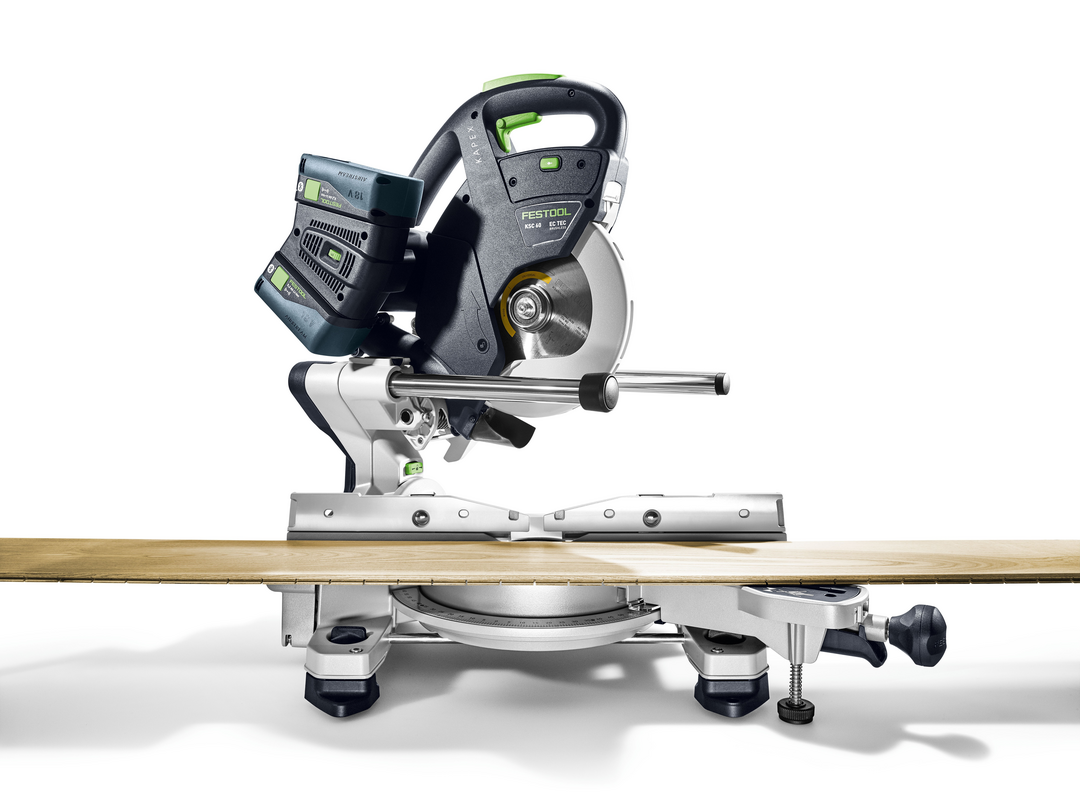

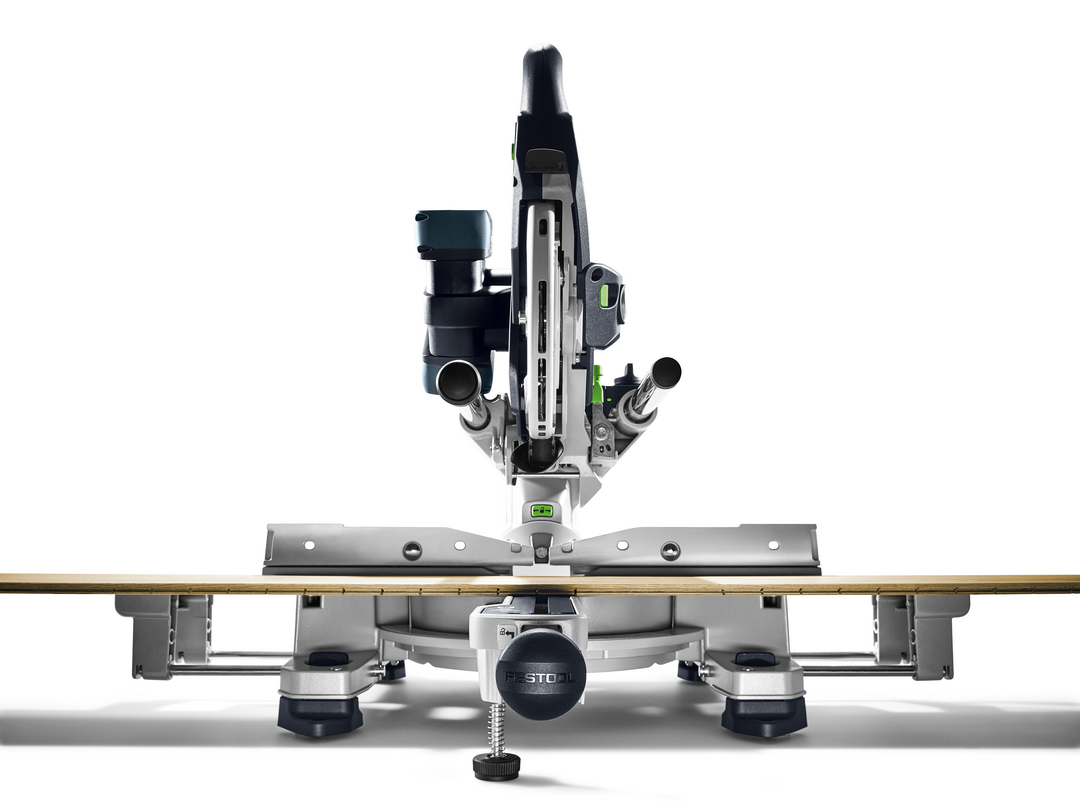

Flexible – Built in extension tables for the stable support of longer work pieces

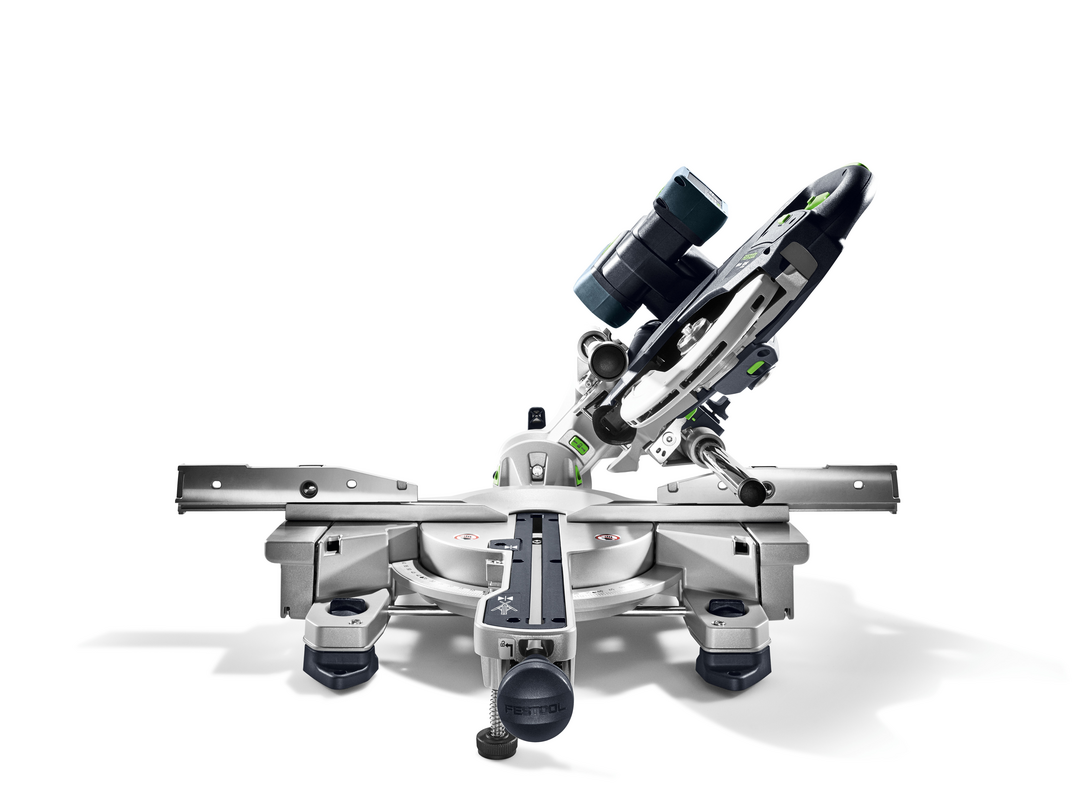

Versatile - Miter angles of up to 60° on each side and bevel angles of up to 47° on each side

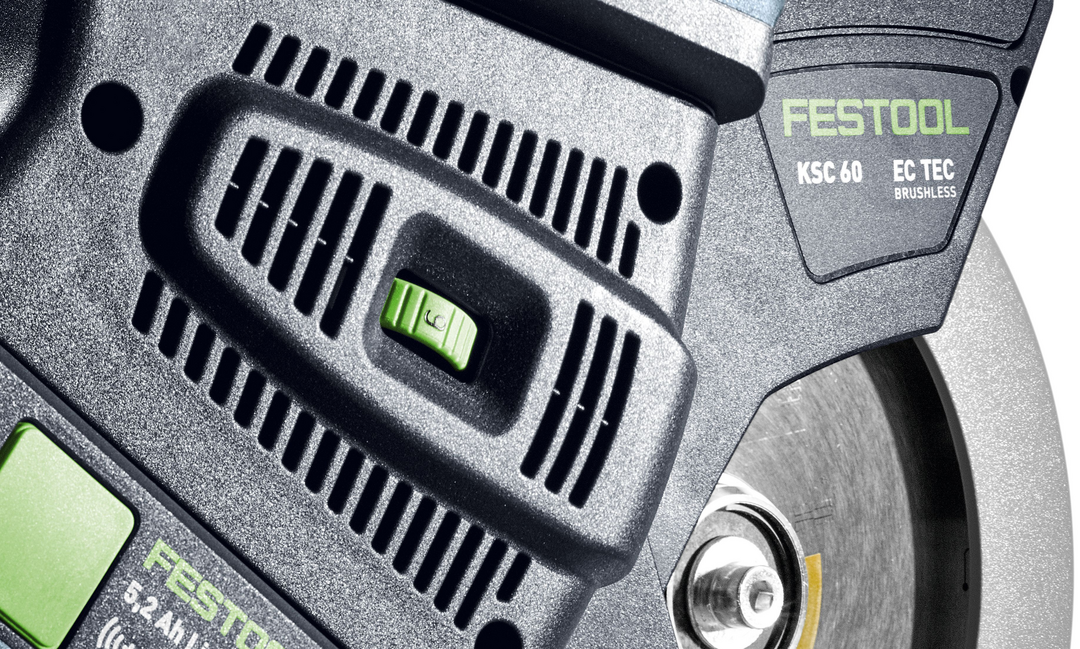

Long-Lasting - The combination of the brushless EC-TEC motor and dual battery system delivers maximum power

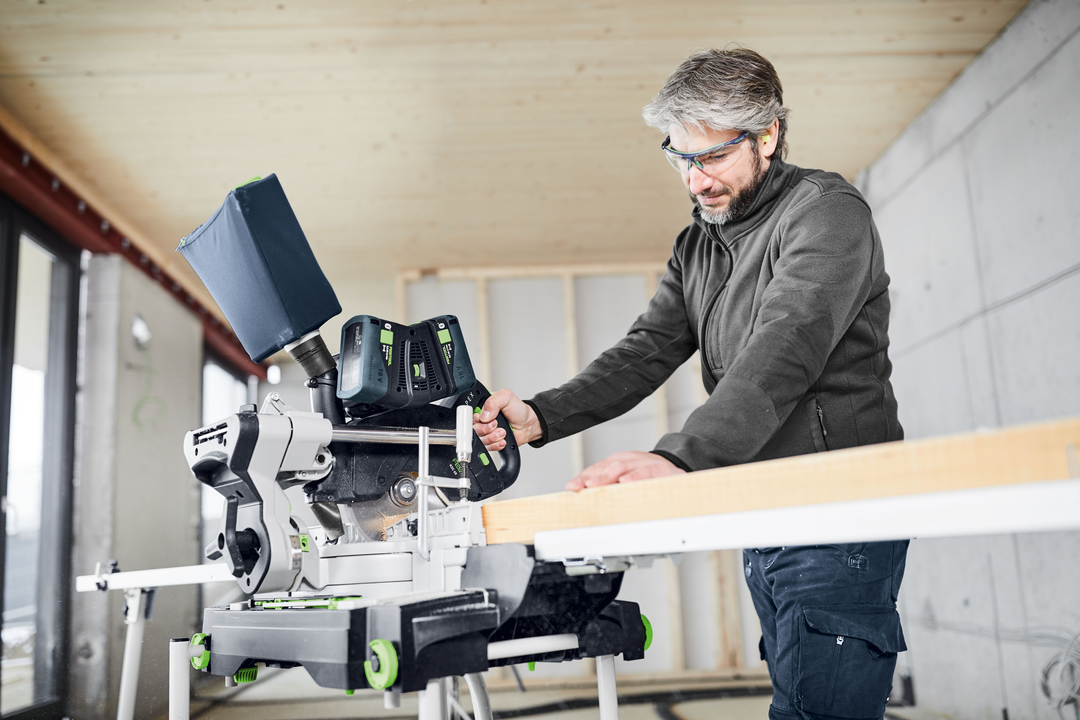

Mobile - Low weight, compact design, convenient handles
Adjust to the Work Material - With saw blades for every material and variable speed to adapt to the material

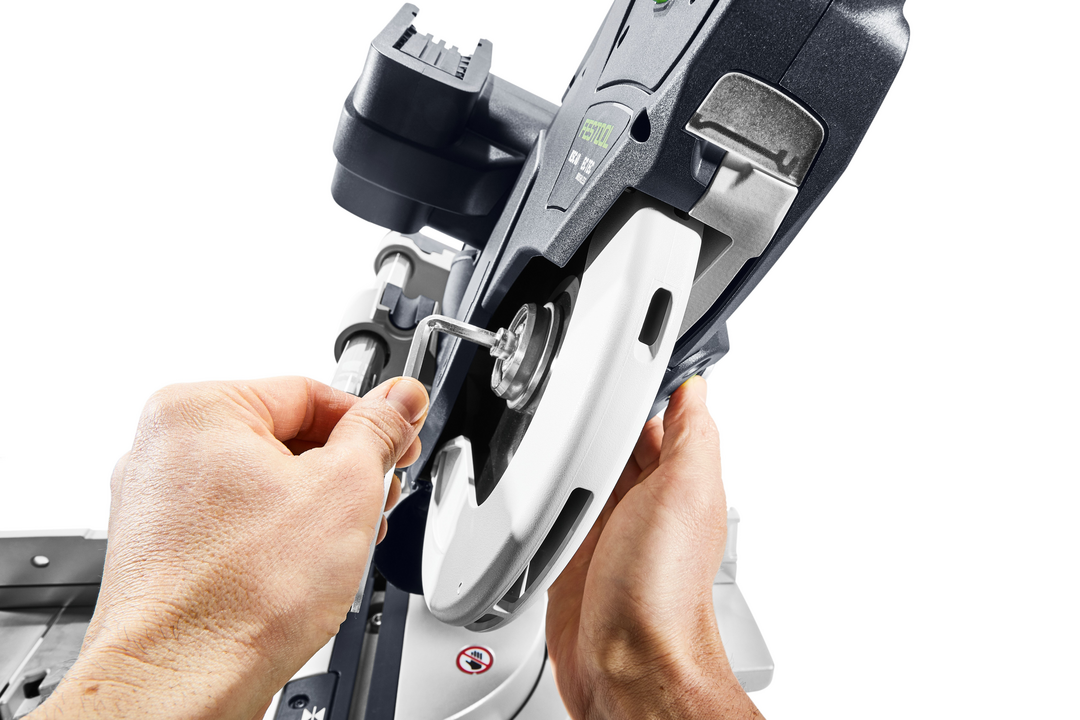

Set Includes: Saw; Bevel Gauge; Chip Collection Bag; Saw Blade WOOD UNIVERSAL HW 216 × 2.3 × 30 W36; Elevation; Fastening Clamp FSZ 120; Hex key, WAF 6; KA-UGKS 60 R/L Trimming Stop (extensions); LED Spotlight; SYS 18V 2 x 5.0/TCL 6 DUO Energy Set, and Underframe (UG cart/stand).
Model: 577180
Specifications
Battery Voltage : 18/36 VIdle Engine Speed : 1300 - 1800/3500 RPMSaw Blade Diameter : 8-1/2" (216 mm)Cutting Depth at 90°/90° : 12" x 2-3/8" (305 x 60 mm)Cutting Depth at 45°/90° : 8-15/32" x 2-3/8" (215 x 60 mm)Cutting Depth 45°/45° (left) : 8-15/32" x 1-9/16" (215 x 40 mm)Cutting Depth 45°/45° (right) : 8-15/32" x 25/32" (215 x 20 mm)Inclination Angle : 47/46°Miter Angle : 60/60°Cutting Depth : 60°/90° 5-29/32" x 2-3/8" (150 x 60 mm)Dimensions (L x W x H) : 25-5/32" x 18-1/16" x 17-13/32" (639 x 459 x 442 mm)Dust Extraction Connection Diameter : 1-1/16" / 1-2/5" (27/36 mm)Battery Capacity : 5.2 AhWeight : 1 x 18 V/2 x 18 V 37.69/40.78 lbs (17.8/18.5 kg)
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw home.
Festool 577176 KAPEX KSC 60 EB-Plus Cordless Sliding Compound Miter Saw User Guide
Warranty & Certifications
Festool offers and all-inclusive warranty on all their tools.
3-Year Comprehensive Warranty Coverage - including wear and tear!
