Festool 577748 TSV 60 KEB-F-Plus-FS Plunge Cut Track Saw w/75 in. Guide Rail

  • SKU T577748
In Stock & Ready to Ship
Check In-Store Availability

FREE Shipping on all Festool items!  Click here for details>

Product Description

Festool 577748 TSV 60 KEB-F-Plus-FS Plunge Cut Track Saw with Scoring Blade and 75" Guide Rail. Splinter-free sawing like never before! Since 1980, Festool plunge-cut saws have been known for their reliable quality and absolute precision. Their objective: The perfect cut. With the TSV 60 K plunge-cut saw with scoring function, Festool has achieved exactly that. Splinter-free sawing on both sides now from the very first cut.

Coupled with the built-in KickbackStop, you and your work piece are protected from dangerous kickbacks and, thanks to the ideal combination of Festool system accessories, your work can always be precise and tailored to requirements, even when on the move. With the TSV 60 K, workshop-quality results – as good as a stationary machine - can be replicated on the job site. Germany

Key Features

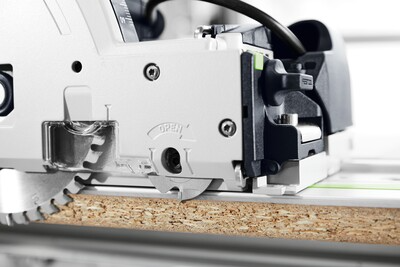

Splinter-free: The scoring blade ensures splinter-free work results on both sides from the very first cut.
Long-lasting: Diamond scoring saw blade has a very long service life, which ensures perfect cut quality time after time.

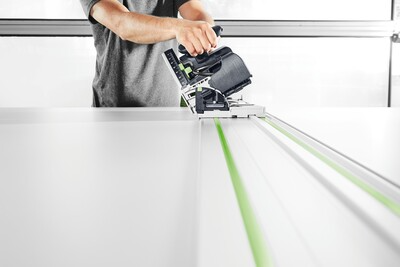

Saw System: The TSV 60 is a comprehensive system with ideal accessories for perfect panel cutting.
Safer: The unique KickbackStop reduces the risk of injury caused by kickback during sawing or plunge-cutting into the work piece.

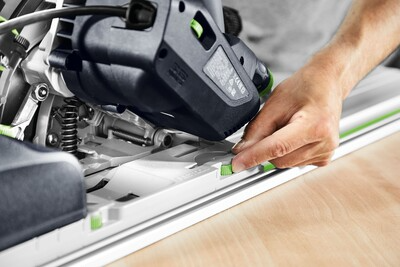

Versatile: Can be used with either an FSK cross cutting guide rail or an FS guide rail.

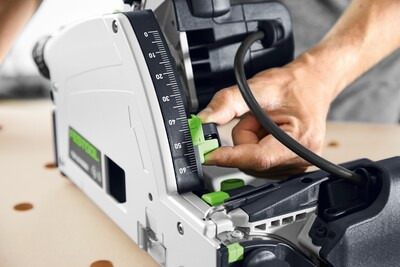

Increased Cutting Depth: The TSV 60 can cut up to 2-7/16" deep.
Works on Angled Cuts: Perfect scoring, even on miter cuts from 0° to 45°.

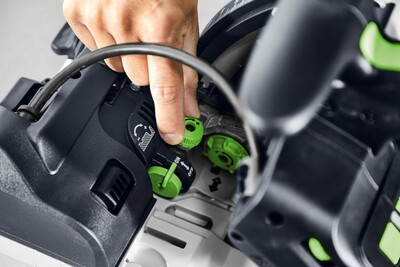

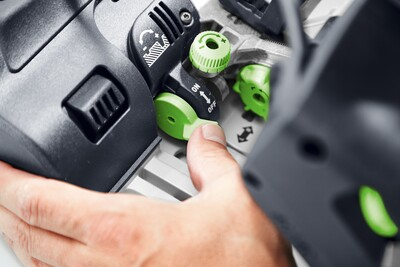

Flexible: Both the scoring saw blade and the main saw blade can be manually activated and deactivated.
Convenient: The FastFix spindle stop on the main saw blade and the possibility of standing it on its side make changing the saw blade very simple, even with the scoring saw blade.
Consistent Power: The EC-TEC motor working in combination with the thin kerf saw blades ensures work progresses without difficulty while requiring less effort.

Main Applications
- Splinter-free cutting of chipboard, specially veneered and plastic-coated panels
- Splinter-free cutting of HPL compact panels such as Trespa®
- Precise plunge cuts in materials up to 2-7/16" (60 mm) thick
- Perfect, splinter-free cutting to length of interior doors
- Cutting recesses in doors and kitchen worktops
- Cross cuts with the FSK cross cutting guide rail (perfect for floor and façade panels)

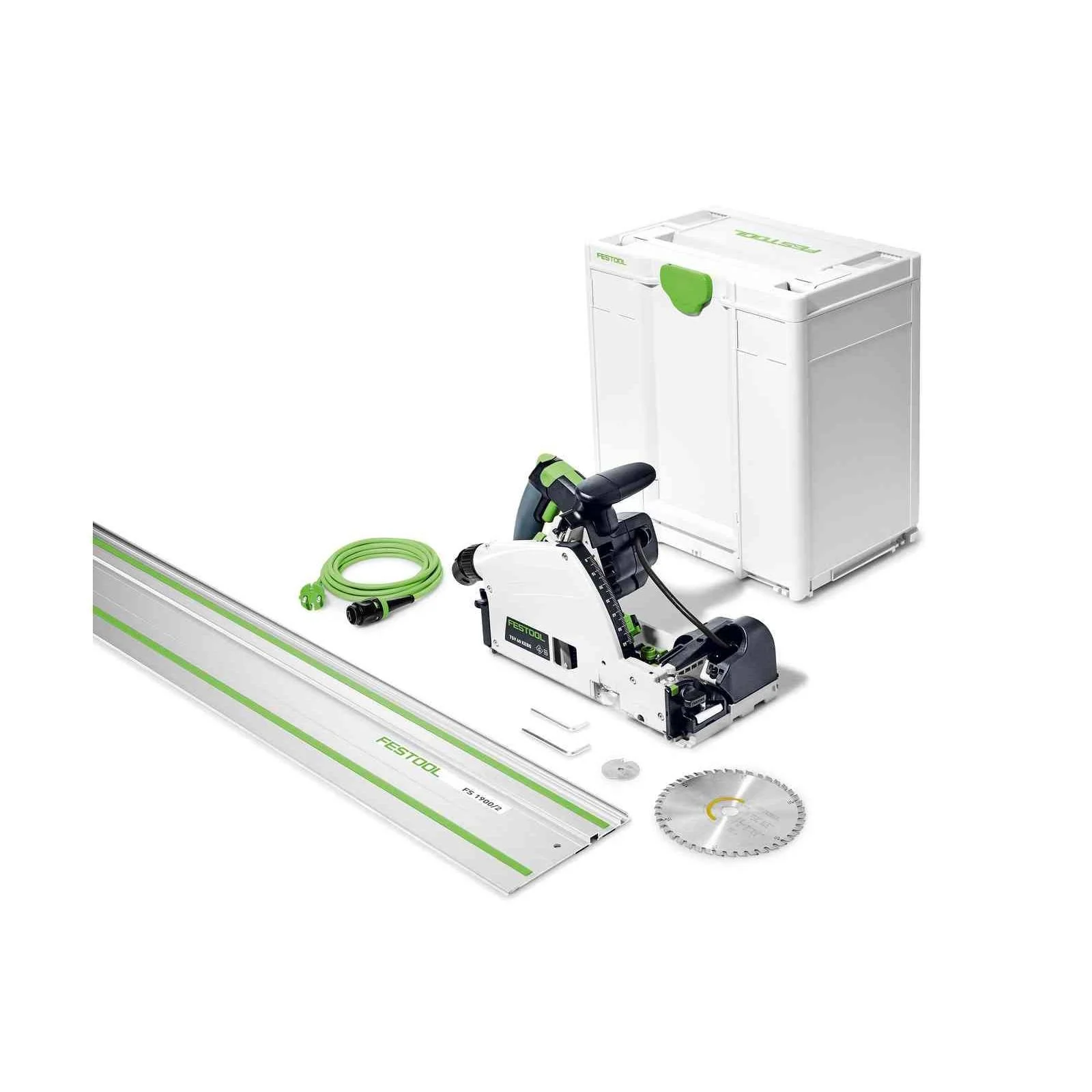

TSV 60 K Saw with Guide Rail Includes: Saw; Wood Fine Cut HW 168 x 1.8 x 20 WD42 Saw Blade; Scoring Saw Blade DIA 47x2.5x6.35 T 1; Sight Window; Splinter Guard; 4 mm Allen Key; 5 mm Hex Key; 13.1 ft. (4 M) Plug-it Cord; 75 in. FS1900 Guide Rail; and a Systainer SYS3 M 437.

Model: 577748

Specifications

Power Consumption: 1500 watts
Idle Motor Speed: 3,000 to 6,800 RPM
Saw Blade Diameter: 6-5/8" (168 mm)
Scoring Blade Diameter: 1.85" (47 mm)
Angular Range: 0 to 45°
Cutting Depth: 0" to 2-7/16" (0 - 62 mm)
Max. Cutting Depth at 45°: 1-3/4" (45 mm)
Dust Extraction Connection Diameter: 1-1/16" / 1-7/16" (27 / 36 mm)
Weight: 13.7 lb. (6.2 kg)

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 577748 TSV 60 KEB-F-Plus-FS Plunge Cut Track Saw w/75 in. Guide Rail. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 577748 TSV 60 KEB-F-Plus-FS Plunge Cut Track Saw w/75 in. Guide Rail home.

Festool 577748 TSV 60 KEB-F-Plus-FS Plunge Cut Track Saw w/75 in. Guide Rail User Guide

Warranty & Certifications

Festool offers and all-inclusive warranty on all their tools.

3-Year Comprehensive Warranty Coverage - including wear and tear!
3-Year free shipping to and from Festool service department.
10-Year spare parts availability guarantees long-term support.
1-Month money back guarantee.
