Product Description

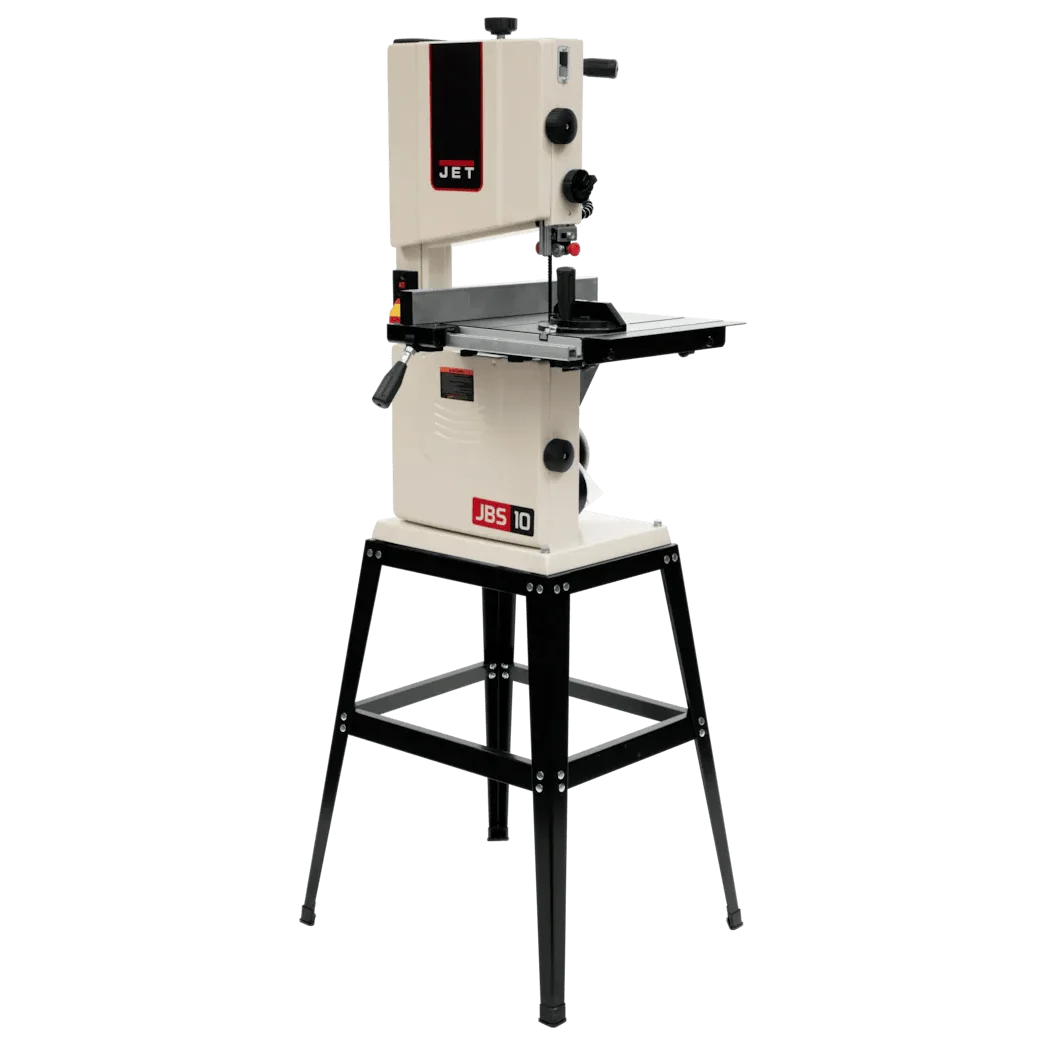

The JET 10" Open Stand Bandsaw (model JWB-10), is compact and easy to transport to different shop locations. It features a Poly-V drive system that delivers maximum power transfer from motor to blade and reduces vibration. Additionally, it has a quick release blade tension, upper and lower ball bearing blade guides, an extra-large cast iron tilting table, and an easily adjustable LED work light. This well-equipped bandsaw packs in all the features of bigger bandsaws but fits within a small footprint that is ideal for workshops with limited space.
Other Features:
Aluminum extruded fence – Ensures smooth sliding action
Blade site window – Offers easy viewing of the blade tracking
Dust port – Accepts multiple size hoses
Extra-large cast iron table with retractable extension wing – Provides additional work piece support
Magnifying cursor – Enlarges measurement scale for precise fence location
One piece welded frame design – Reduces machine vibration and flex
Oversized, ergonomic knobs – Provide ease of use and maximum control
Rack and pinion blade guide adjustment with integrated locking knob – Offers precise height control
Rigid steel stand – Allows bandsaw to transition from the benchtop to the floor
Table tilting trunnion – Allows working angles from 0° to 45°
Includes:
(1) Band saw
(1) Table insert
(1) Table
(1) Fence
(1) Guide rail
(1) Handle
(2) Hex wrenches (3mm, 6mm)
(1) Wrench
(1) Miter gauge
(4) Stand legs
(4) Rubber foot
(2) Short support plate
(2) Long cross brace
(2) Long support plate
(2) Short cross brace
(1) Owner’s Manual
(1) Warranty Card
(1) Hardware package
Model Number: 714000 / JWB-10
Specifications
Band Saw Size/Wheel Diameter: 10”
Cutting Capacity Height: 4”
Minimum Saw Blade Width: 1/8”
Table Size: (L) 13-1/8” x (W) 13-3/8”
Motor Power: 1/2 HP
Table Height from Floor: 41-1/2”
Motor Voltage: 115
Motor Amps: 3.4
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the JET 714000 Woodworking Band Saw. Read it before you buy it, or come back and download it if you have questions.
JET 714000 Woodworking Band Saw Instruction Manual
