Product Description

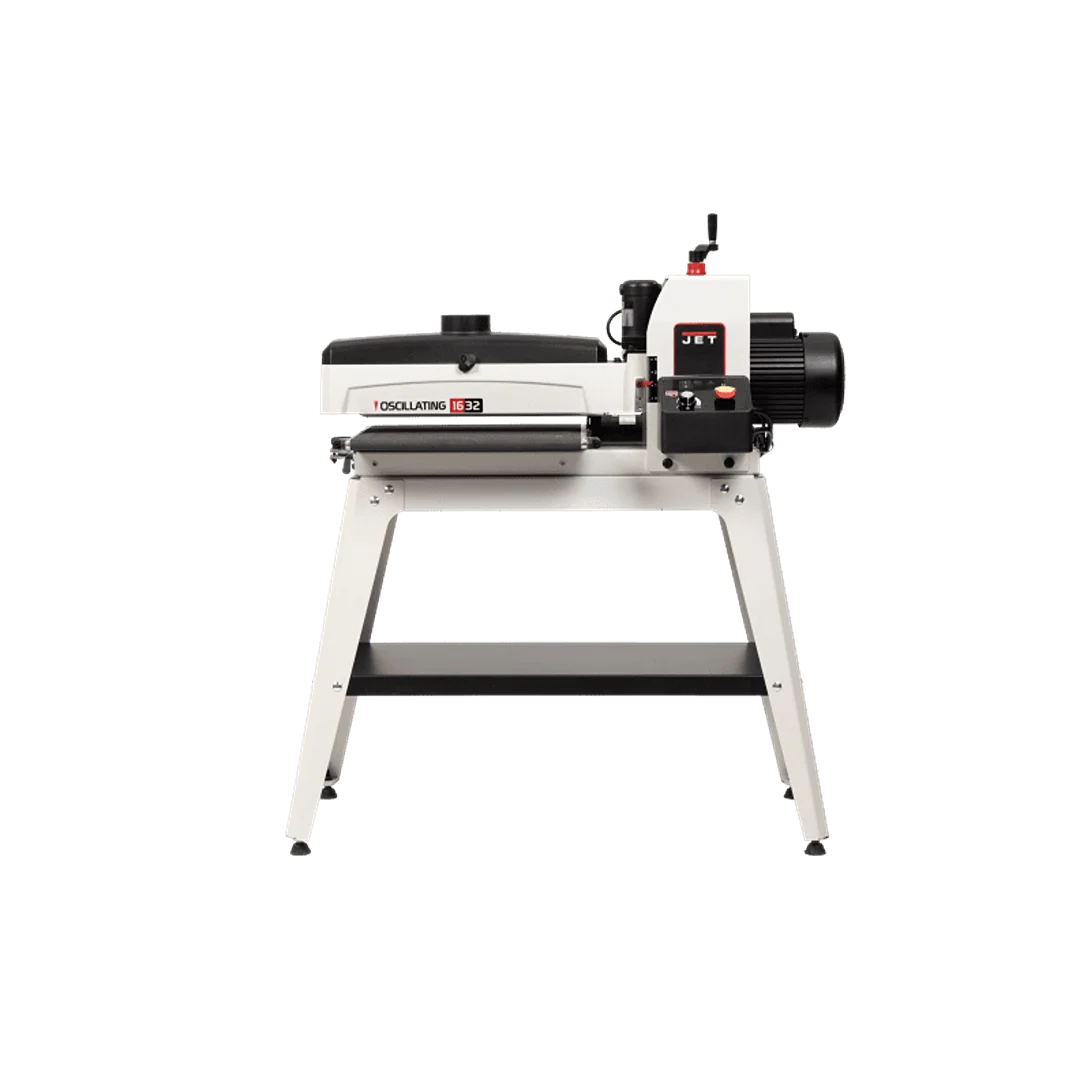

JET 1632 Oscillating Drum Sander w/ Stand produces an unbeatable sanding finish, with its exclusive variable speed oscillating drum moving from left to right—minimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmart™ feed control technology, tool-less parallelism adjustment, and Heavy Duty Steel Stand make this popular sander the most innovative in its class.
Model Number: JT9-723525
Specifications
Weight: 191 lbs
Conveyor Speed (FPM): 0 to 10
Drum Bearing Diameter (In.): 1
Drum Diameter (In.): 5
Drum Length (In.): 16
Drum Speed (RPM): 1725
Dust Port Outside Diameter (In.): 4
Maximum Board Thickness (In.): 3
Maximum Board Width (In.): 16
Minimum Board Length (In.): 2-3/8
Minimum Board Thickness (In.): 1/32
Motor Amps: 14
Motor Power (HP): 1-1/2
Recommended Circuit Size (Amps.): 20
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the operator's manual for the JET Drum Sander. Read it before you buy it, or come back and download it if you have questions.
JET Drum Sander Owners Manual
Warranty & Certifications
No Manuals available for this product
