Product Description

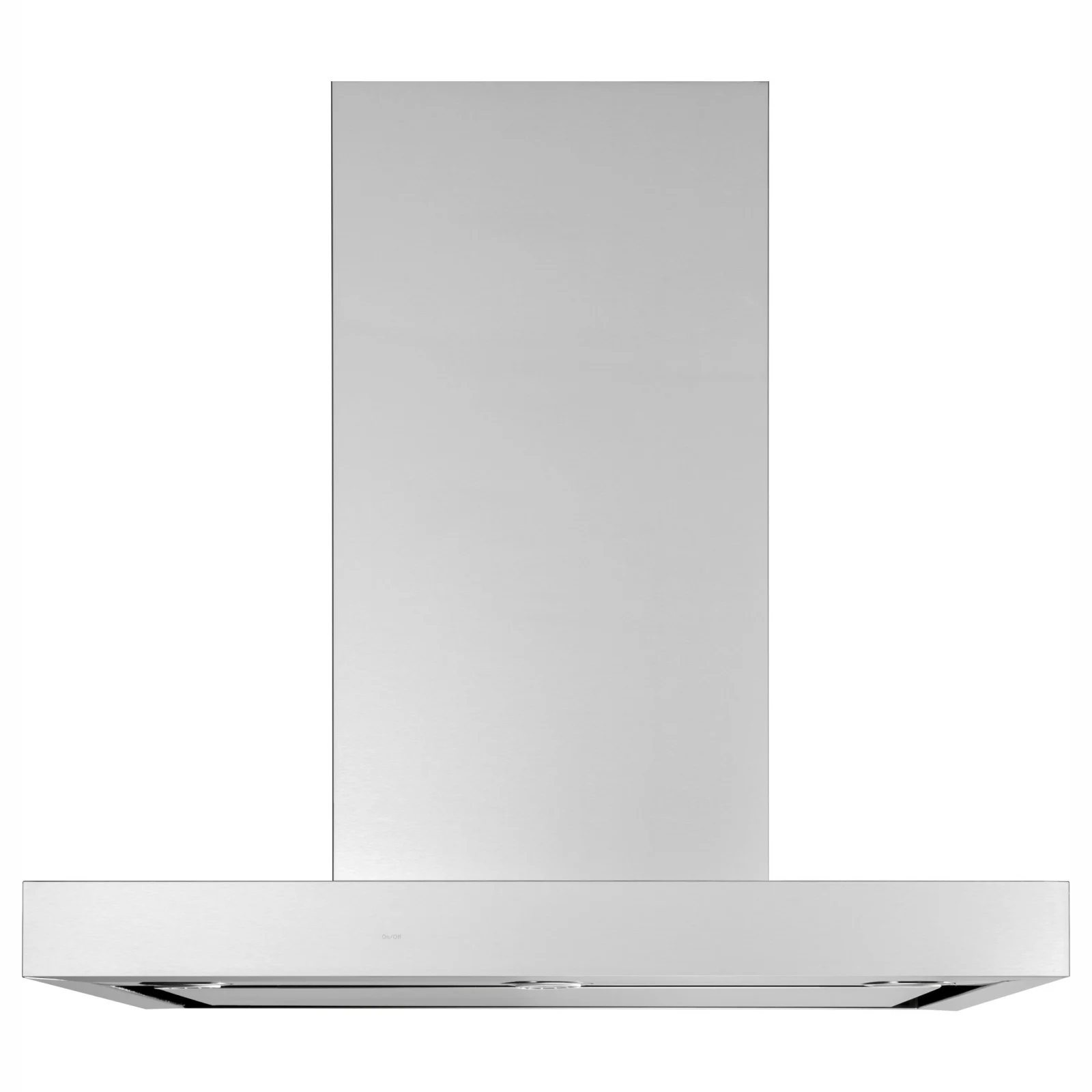

30" Smart Designer Wall Mount Hood w/ Perimeter Venting
Features
- 610-CFM range hood blower with four-speed fan control : Remove smoke, grease, odors and moisture from the kitchen with four fan speeds that provide just the right amount of ventilation
- Adjustable 610 CFM range hood blower : High powered 610 CFM blower is adjustable downward to either 380 or 290 maximum CFM to accommodate different installation needs
- Add a touch of light : Make sure even the smallest details of your kitchen are impressive, with an easy-to-clean and easy-to-read LED backlit glass touch control
- Four-speed fan control : Helps draw smoke, grease, odors and moisture out of the kitchen air
- Have an edge when it comes to fresh kitchen air : Create a sleek look without sacrificing ventilation power. Perimeter venting captures smoke and odors beyond the edges of the range or cooktop while concealing the filters
- LED backlit glass touch control : Attractive controls are easy to read and instantly wipe clean
- Control from anywhere : Use a smart phone to turn your hood on while you're away from home or use the voice control feature for added convenience
- Perimeter venting : Provides a clean, modern design that makes a statement of style in any kitchen.
- Take your designs to new heights : Create a show-stopping design that will impress guests with duct cover extensions that reach all the way up to 10-foot ceilings. An optional 14-foot extension kit is also available
- WiFi powered by SmartHQ™ : Control appliances with a smart device or just the sound of your voice
- Set the stage for any meal : Create the right ambience any time of day with triple LED dimmable lighting. Bulbs are included
- 10-ft. ceiling height : Included duct cover extensions reach up to 10' ceilings and work with optional accessories to reach up to 14' ceilings
- Freshen up your kitchen air : Recirculating or external convertible venting options, with all accessories included in the box, allow you to fill the kitchen with fresh air
- Triple LED dimmable lighting : bulbs included - LED modules ensure bright lighting for the entire cooking environment
- Control at your fingertips : Share your favorite stories without interruption thanks to an included remote control that can change lighting and fan speed settings from anywhere in the kitchen
- Convertible venting options : Select recirculating or external venting
- Perfectly timed all the time : Keep dinner parties on schedule with a bright timer and clock display that's always at the ideal height
- Timer and clock : Enjoy the convenience of a bright display at the ideal height
- A streamlined cooking experience is yours : Simplify your cooking steps by using Chef Connect to automatically activate vents and surface lights when a range element is turned on, and to sync your vent hood and range clocks
- Chef Connect : Automatically control the hood's lights and fan by syncing with the range
Specifications
| Labor Warranty | Limited 1-year entire appliance |
|---|
| Control Location | Front |
|---|
| Exhaust Options | Recirculating, Vented to Outside |
|---|
| CFM/ Sones Rating | 450/8.0 (Boost Speed) - Vertical venting |
|---|
| Parts Warranty | Limited 1-year entire appliance |
|---|
| Color Appearance | Stainless Steel |
|---|
| Control Type | Electronic Touch |
|---|
| WiFi Connect | Built-In |
|---|
| Cabinet Width | 30 in |
|---|
| Cooktop Lighting | 3, LED |
|---|
| Time Delay Shut-Off | Yes |
|---|
| App Filter-Multi Brand | Cafe, GE, Monogram |
|---|
| Venting Type | Convertible |
|---|
| Removable Filter | Grease & Charcoal included |
|---|
| Overall Height | 24 in |
|---|
| Charcoal Filter | UXCF91 |
|---|
| Blower / Light Switch Color | Backlit |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Overall Width | 30 in |
|---|
| Max CFM | 450 |
|---|
| 8" Round Duct | Yes |
|---|
| Net Weight | 70 lb |
|---|
| Product Type | Designer Hood |
|---|
| App Filter - Cabinet Width | Vent 30 in. (Standard) |
|---|
| App Filter - Venting Type | Convertible |
|---|
| Filter Cleaning | Dishwasher Safe |
|---|
| Ducting | Vertical Only |
|---|
| Approximate Shipping Weight | 80 lb |
|---|
| Optional Accessories | JXHC1 - Power Cord Kit, UX12DC9SLSS - 12' High Ceiling Duct Cover Kit, UX14DC9SLSS - 14' High Ceiling Duct Cover Kit, UXRC70 - Remote Control |
|---|
| Light Controls | On/Off/Night |
|---|
| App Filter - Hood Type | Designer (includes "canopy" and "chimney") |
|---|
| Amp Rating at 120V | 5.3 |
|---|
| Fan Speed Control | 4-Speed |
|---|
| Control Features | Timer/Clock |
|---|
| Material | Steel |
|---|
| Overall Depth | 20 in |
|---|
