Product Description

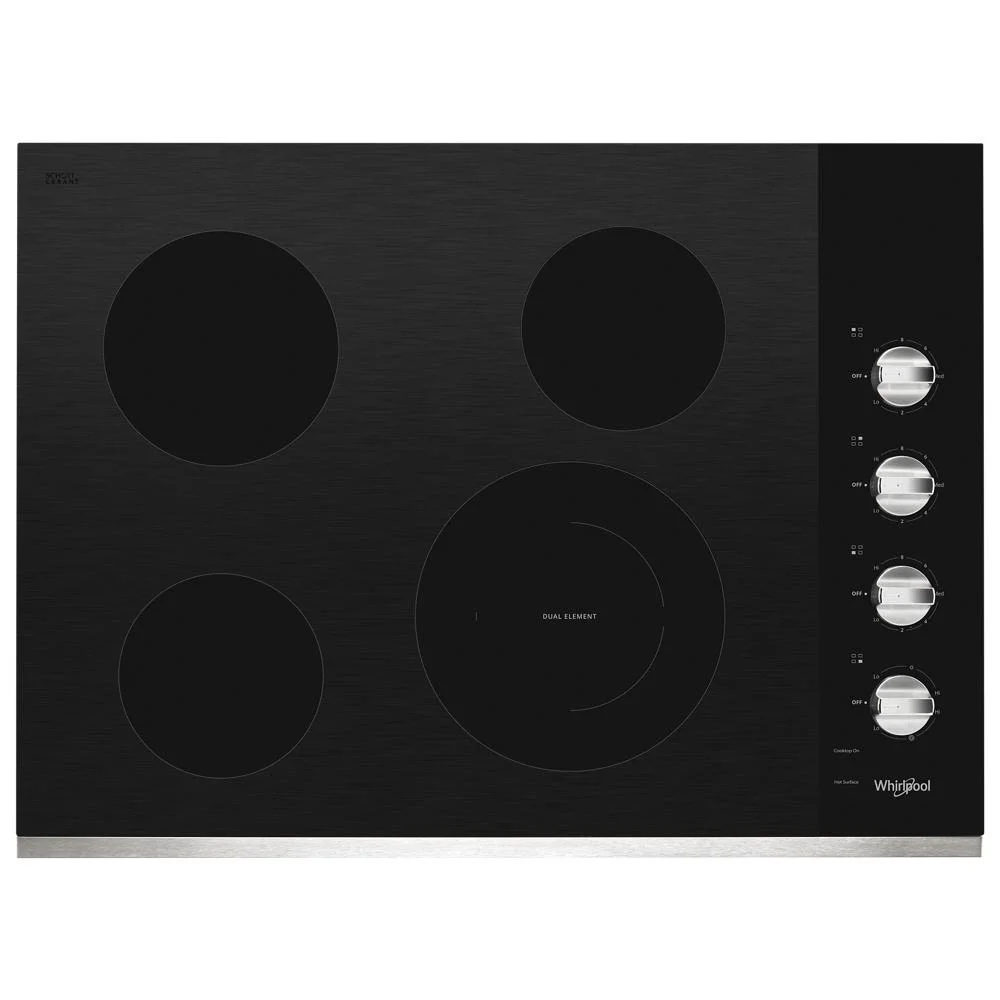

Cook all your family's favorites with an easy-to-clean cooktop designed to make the most of your mealtime routine. Get added flexibility when installing with 30 & 40 amp compatibility, or while cooking with the FlexHeat™ Dual Radiant Element. When dinner's done, a ceramic glass cooktop makes it easy to wipe away messes.
Features
- FlexHeat™ Dual Radiant Element : Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- Easy-Wipe Ceramic Glass Cooktop : Wiping up spills is simple with the easy-to-clean cooktop.
- 30 & 40 Amp Installation : Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- Hot Surface Indicator Light : See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
- Wall Oven Compatible : Install this cooktop to work with a wall oven or on its own for more flexibility.
- 8" Extra Element : Cook small dishes like sides and sauces on the 8" Extra Element.
- 6" Extra Element : Cook small dishes like sides and sauces on the 6" Extra Element.
- ADA compliant : This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
| LP Convertible | No |
|---|
| Knob Color | Stainless Steel |
|---|
| Knob Type | Dishwasher-Safe Plastic |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Number Of Cooking Element-Burners | 4 |
|---|
| Prop65 | Standard |
|---|
| Control Type | Knobs |
|---|
| Power Boost | No |
|---|
| Cutout Width Min | 29.063 |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Infinite Heat Controls | Yes |
|---|
| Cooktop Configuration | All Burners |
|---|
| Digital Display | No |
|---|
| Right Front Element-Burner Type | Dual |
|---|
| Power Outage Compatible | No |
|---|
| Right Front Element-Burner Size | 10in./6in. |
|---|
| Control Location | Right |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| Cooktop Surface Material | Glass |
|---|
| 208V Compatible | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Cutout Depth Max | 20.563 |
|---|
| Carton Height | 9.25 inches |
|---|
| Number Of Open Bays | N/A |
|---|
| Fuel Type | Electric |
|---|
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
|---|
| Cooktop Element Style | Radiant |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Automatic Pan Detection | No |
|---|
| Griddle Included | N/A |
|---|
| Right Rear Element-Burner Power | 1,200W |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Cutout Depth | 20.375 |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Power Cord Included | No |
|---|
| Cutout Depth Min | 20.375 |
|---|
| Carton Depth | 25 inches |
|---|
| Right Front Element-Burner Power | 2500W/1800W |
|---|
| Cooktop Type | Standard |
|---|
| Cooktop Surface Color | Black |
|---|
| Net Weight | 41 pounds |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Combination Match With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
|---|
| Left Rear Element-Burner Size | 8in. |
|---|
| Cutout Width Max | 29.563 |
|---|
| Downdraft Vent | No |
|---|
| Carton Width | 35 inches |
|---|
| Left Front Element-Burner Power | 1,200W |
|---|
| Cutout Width | 29.063 |
|---|
| Gross Weight | 46 pounds |
|---|
| Left Rear Element-Burner Power | 1,800W |
|---|
