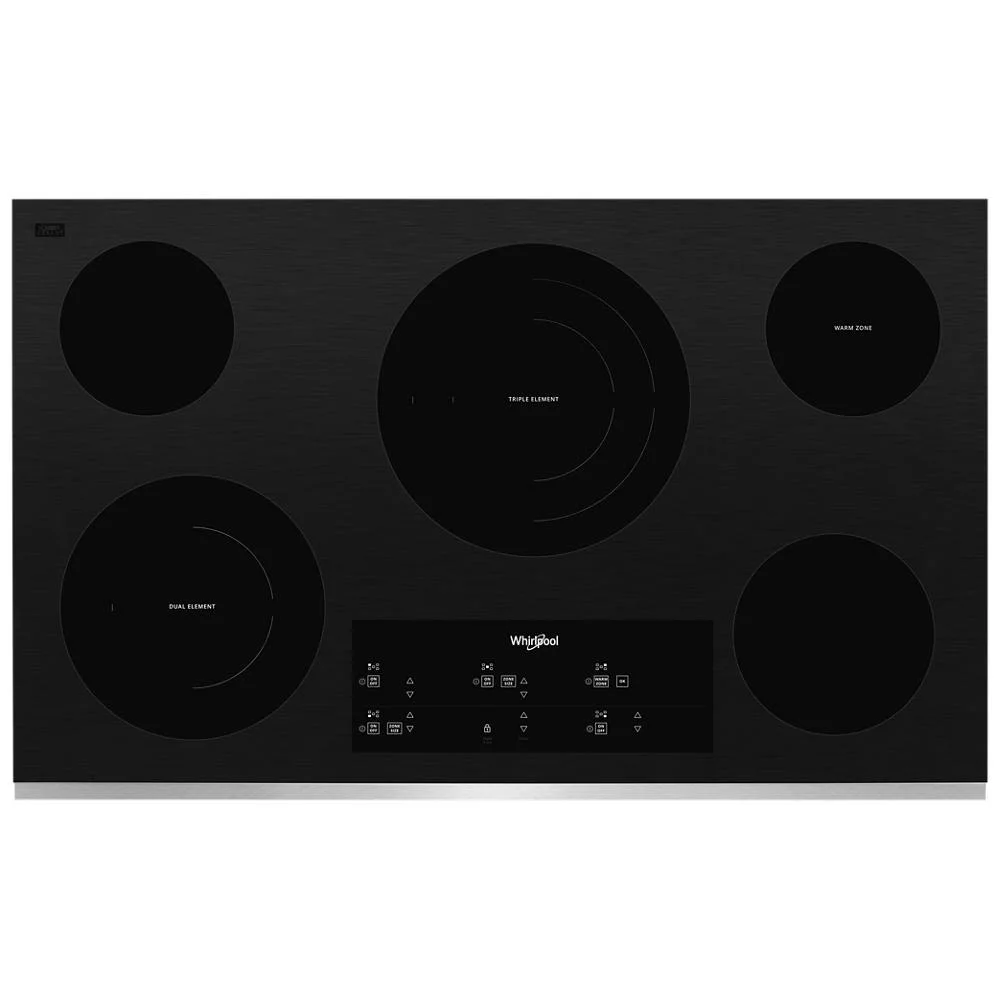

Product Description
Cook all your family's favorites at once and clean up quick with a 5-burner cooktop that makes the most of your mealtime routine. The FlexHeat™ Triple Radiant Element provides more flexibility, and the Warm Zone Element keeps food warm while you're finishing the rest of the meal. Then, cleanup is easy with smooth Tap Touch Controls and Control Lock Mode.
Features
- FlexHeat™ Triple Radiant Element : Get three elements in one with a 6" inner ring that's great for smaller pots and pans, and 9" and 12" outer rings that make room for larger cookware.
- Tap Touch Controls : Clean the controls as easily as you use them.
- Control Lock Mode : Disable the control panel to avoid unintended use and easily clean controls.
- FlexHeat™ Dual Radiant Element : Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- Easy-Wipe Ceramic Glass Cooktop : Wiping up spills is simple with the easy-to-clean cooktop.
- Warm Zone Element : Keep food warm while you're finishing the rest of the meal using this low-powered element.
- Kitchen Timer : Keep track of cook times with an easy-to-clean Kitchen Timer that's integrated into the Tap Touch Controls.
- 5 Element Cooktop : Cook more of your family's favorites and enjoy added versatility with a fifth element.
- 5-Element Cooktop : Provides five independent cooking surface areas.
- 30 & 40 Amp Installation : Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- Hot Surface Indicator Light : See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
- Wall Oven Compatible : Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.
- 8" Extra Element : Cook small dishes like sides and sauces on the 8" Extra Element.
- 6" Extra Element : Cook small dishes like sides and sauces on the 6" Extra Element.
- ADA compliant : This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
| Cutout Depth Min | 20.375 |
|---|
| Right Rear Element-Burner Power | 100W |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Power Boost | No |
|---|
| Power Outage Compatible | No |
|---|
| Fuel Type | Electric |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Number Of Open Bays | N/A |
|---|
| Control Location | Right Front |
|---|
| LP Convertible | No |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Net Weight | 44 pounds |
|---|
| Gross Weight | 50 pounds |
|---|
| Cutout Width Min | 34.563 |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Infinite Heat Controls | No |
|---|
| 208V Compatible | Yes |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Right Rear Element-Burner Type | Round |
|---|
| Cooktop Surface Color | Black |
|---|
| Carton Width | 40.75 inches |
|---|
| Cooktop Element Style | Radiant |
|---|
| Center Rear Element-Burner Type | Triple |
|---|
| Left Front Element-Burner Type | Dual |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Cooktop Surface Material | Glass |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Center Rear Element-Burner Size | 12in./9in./6in. |
|---|
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Right Front Element-Burner Size | 8in. |
|---|
| Combination Match With Oven | WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0 |
|---|
| Cooktop Type | Standard |
|---|
| Control Type | Tap Touch |
|---|
| Digital Display | Yes |
|---|
| Downdraft Vent | No |
|---|
| Cooktop Configuration | All Burners |
|---|
| Cutout Width Max | 35.563 |
|---|
| Automatic Pan Detection | No |
|---|
| Carton Depth | 25 inches |
|---|
| Griddle Included | N/A |
|---|
| Power Cord Included | No |
|---|
| Right Front Element-Burner Power | 1,800W |
|---|
| UL | Yes |
|---|
| Left Front Element-Burner Size | 10in./6in. |
|---|
| Prop65 | Standard |
|---|
| Left Front Element-Burner Power | 3000W/1900W |
|---|
| Carton Height | 9.25 inches |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Cutout Depth Max | 20.563 |
|---|
| Center Rear Element-Burner Power | 3000/2200/1100W |
|---|
| Number Of Cooking Element-Burners | 5 |
|---|
