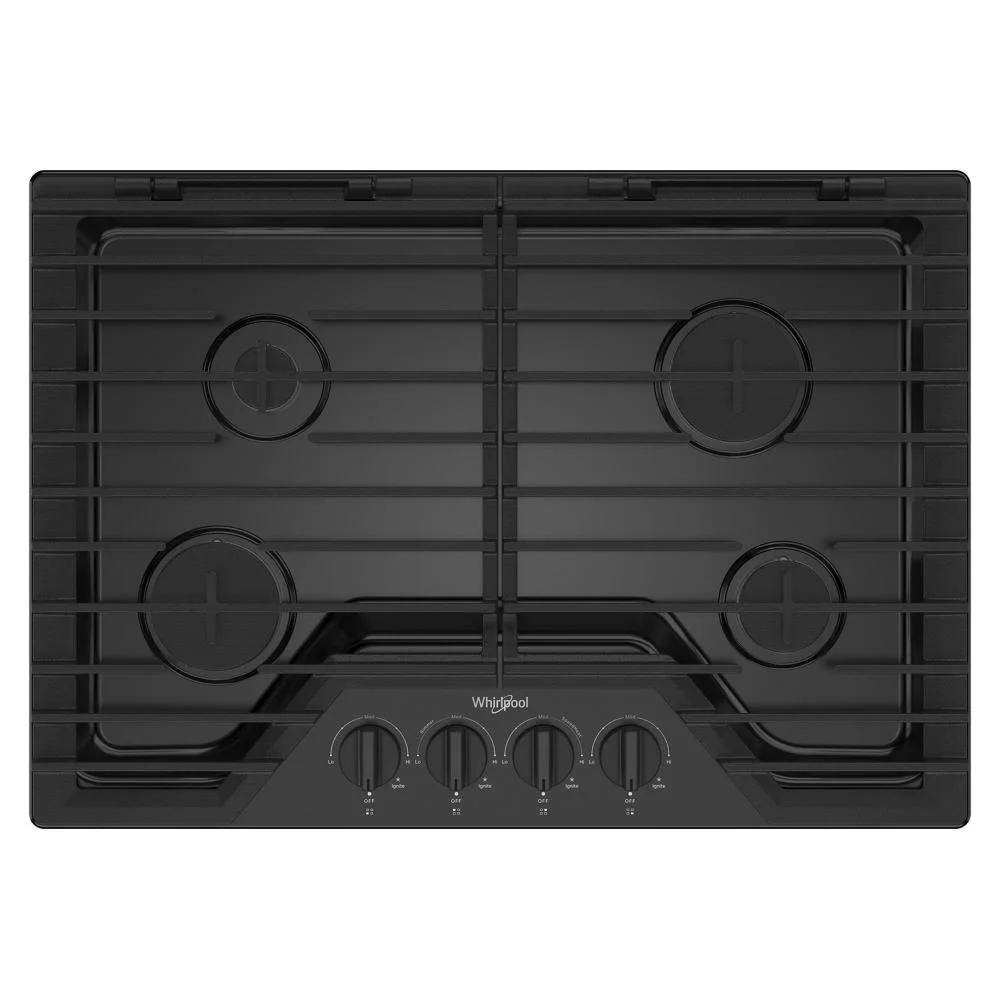

Product Description
Get dinner on the table fast with greater Cooking Flexibility thanks to various burner sizes and power levels. Use the SpeedHeat™ Burner as a quick boil burner and the 5K BTU Simmer Burner for low, even heat. The 9.1K–12K BTU Multi-Purpose Burners are perfect for daily cooking. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.
Features
- SpeedHeat™ Burner : Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
- Cooking Flexibility : Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
- EZ-2-Lift™ Hinged Cast-Iron Grates : Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
- 5K BTU Simmer Burner : Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
- 9.1K–12K BTU Multi-Purpose Burners : Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
- Dishwasher-Safe Cast-Iron Grates : Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
- Upswept SpillGuard™ Cooktop : Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
- Edge-to-Edge Cast-Iron Grates : Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
- Sealed Burners : Cut down on cleanup with burners that are sealed to prevent food from falling into them.
- Porcelain-Enameled Cooktop : Clean up easily with a smooth, porcelain-enameled surface that makes it simple to wipe up cooktop spills.
- Wall Oven Compatible : Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
- ADA Compliant : This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
| Cutout Depth | 20 |
|---|
| Cutout Width Max | 29.563 |
|---|
| Power Boost | No |
|---|
| Control Type | Knobs |
|---|
| Left Rear Element-Burner Type | Simmer |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Carton Height | 12.99 inches |
|---|
| Griddle Included | N/A |
|---|
| ADA Compliant | ADA Height and Side Reach Compliant |
|---|
| Ignition Type | Direct Spark Ignition |
|---|
| Digital Display | No |
|---|
| Right Rear Element-Burner Type | Power |
|---|
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7 |
|---|
| Downdraft Vent | No |
|---|
| Cutout Width | 29.563 |
|---|
| Number Of Grates | 2 |
|---|
| Infinite Heat Controls | No |
|---|
| Automatic Pan Detection | No |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Combination Match With Oven | WOES3027L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC0A; WOS51EC7; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7 |
|---|
| Cutout Width Min | 28.5 |
|---|
| Right Rear Element-Burner Power | 18,000 BTU |
|---|
| Works With | No |
|---|
| Knob Type | Plastic |
|---|
| Prop65 | Standard |
|---|
| Power Outage Compatible | Yes |
|---|
| Left Front Element-Burner Power | 12000 BTU |
|---|
| UL | Yes |
|---|
| Cooktop Configuration | All Burners |
|---|
| Left Rear Element-Burner Power | 5000 BTU |
|---|
| Cutout Depth Max | 20 |
|---|
| Venting | N/A |
|---|
| Number Of Cooking Element-Burners | 4 |
|---|
| Right Front Element-Burner Power | 9100 BTU |
|---|
| Heating Element On Indicator Light | No |
|---|
| Carton Depth | 24.96 inches |
|---|
| Net Weight | 56.14 pounds |
|---|
| LP Convertible | Yes - Kit Included |
|---|
| Ventilation Type | N/A |
|---|
| Cooktop Element Style | Sealed Burner |
|---|
| Cooktop Surface Color | Black |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Knob Color | Black |
|---|
| Control Location | Front |
|---|
| Carton Width | 34.68 inches |
|---|
| Grate Details | Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish |
|---|
| Power Cord Included | Yes |
|---|
| Hot Surface Indicator Light | No |
|---|
| Cutout Depth Min | 19 |
|---|
| Gross Weight | 60.54 pounds |
|---|
| Right Front Element-Burner Type | Standard |
|---|
