Product Description

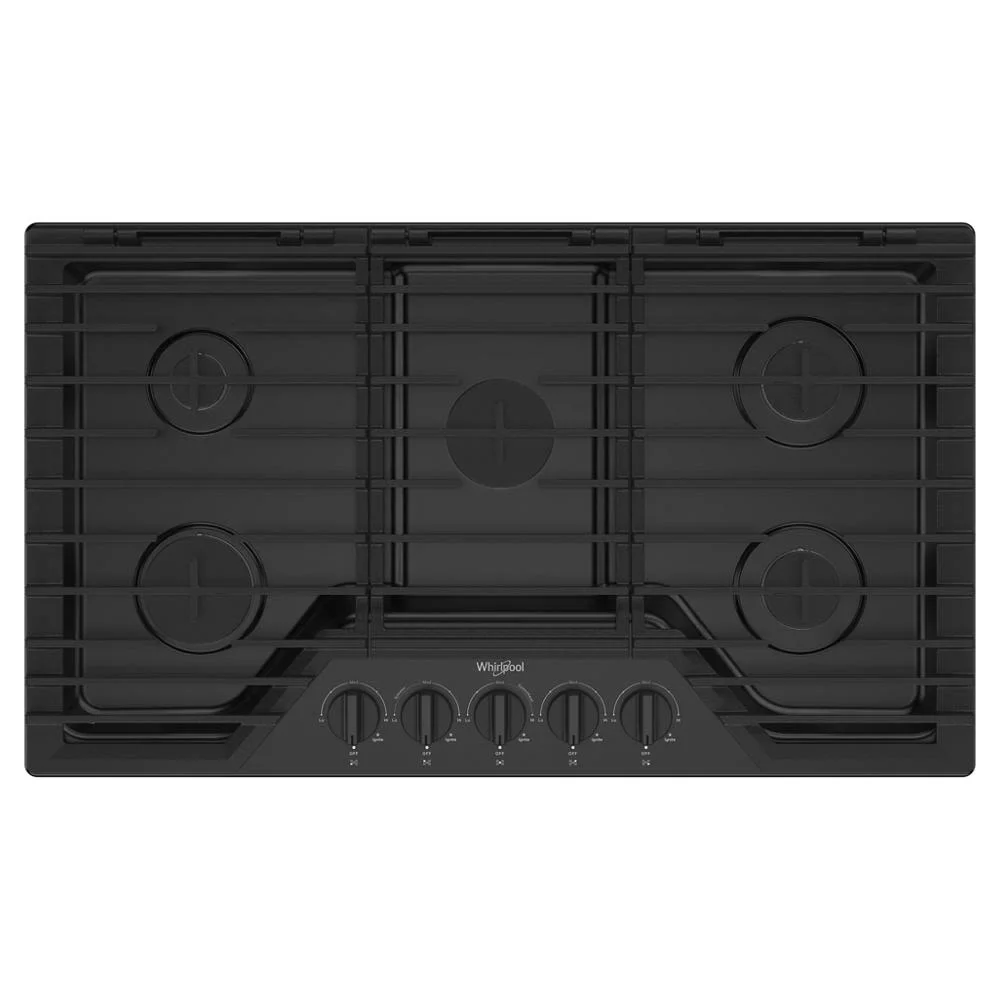

Get dinner on the table fast thanks to a Fifth Burner for greater Cooking Flexibility. This 5-burner gas cooktop includes a SpeedHeat™ Burner for a quick boil and a 5K BTU Simmer Burner for low, even heat. Then cleanup is quick and easy with the EZ-2-Lift™ Hinged Cast-Iron Grates.
Features
- SpeedHeat™ Burner : Get a rapid boil and perfect sear quickly with the SpeedHeat™ Burner, which generates high heat to get dinner to the table fast.
- Cooking Flexibility : Navigate busy mealtimes with various burner sizes and a range of power levels, so you can simmer your sauce while you sear your steaks to maximize time in the kitchen.
- EZ-2-Lift™ Hinged Cast-Iron Grates : Get quick access to spills on the cooktop with our industry-first EZ-2-Lift™ Hinged Cast-Iron Grates. The hinged design lets you wipe up underneath without the hassle of removing heavy grates.
- Fifth Burner : Save time and cook everyone's favorite at once with the extra Fifth Burner. With room to fit different pan sizes, you can boil water, sauté veggies and sear burgers all at the same time.
- 5K BTU Simmer Burner : Easily maintain low, even heat to simmer your sauces, warm up leftovers or melt chocolate with the 5K BTU Simmer Burner.
- 9.1K–12K BTU Multi-Purpose Burners : Get a variety of heating power with your multi-purpose burners. The 9.1K BTU burner gives medium heat for daily cooking while the 12K BTU burner gives quick, high heat for searing.
- Dishwasher-Safe Cast-Iron Grates : Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
- Upswept SpillGuard™ Cooktop : Cleanup is fast and easy with a cooktop that has raised edges to help contain spills.
- Edge-to-Edge Cast-Iron Grates : Maximize your space to sauté, boil and simmer with cast-iron grates that extend across the entire cooktop, giving you the flexibility to move pots and pans anywhere.
- Sealed Burners : Cut down on cleanup with burners that are sealed to prevent food from falling into them.
- Porcelain-Enameled Cooktop : Clean up easily with a smooth, porcelain-enameled surface that makes it simple to wipe up cooktop spills.
- Wall Oven Compatible : Install this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility.*
- ADA Compliant : This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
| Cooktop Element Style | Sealed Burner |
|---|
| Cutout Depth | 20 |
|---|
| Left Rear Element-Burner Type | Simmer |
|---|
| Cutout Depth Min | 19 |
|---|
| UL | Yes |
|---|
| Heating Element On Indicator Light | No |
|---|
| Gross Weight | 73.36 pounds |
|---|
| Right Rear Element-Burner Power | 9100 BTU |
|---|
| Number Of Grates | 3 |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Cutout Width Min | 33.875 |
|---|
| Ignition Type | Direct Spark Ignition |
|---|
| Net Weight | 66.7 pounds |
|---|
| Digital Display | No |
|---|
| Right Front Element-Burner Power | 9100 BTU |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Center Element Burner Type | Power |
|---|
| Venting | N/A |
|---|
| LP Convertible | Yes - Kit Included |
|---|
| Power Outage Compatible | Yes |
|---|
| Cutout Width | 35.25 |
|---|
| Downdraft Vent | No |
|---|
| Power Boost | No |
|---|
| ADA Compliant | ADA Height and Side Reach Compliant |
|---|
| Number Of Cooking Element-Burners | 5 |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Works With | No |
|---|
| Knob Type | Plastic |
|---|
| Griddle Included | N/A |
|---|
| Left Front Element-Burner Power | 12000 BTU |
|---|
| Cooktop Configuration | All Burners |
|---|
| Power Cord Included | Yes |
|---|
| Infinite Heat Controls | No |
|---|
| Carton Width | 40.65 inches |
|---|
| Cooktop Surface Color | Black |
|---|
| Prop65 | Standard |
|---|
| Left Rear Element-Burner Power | 5000 BTU |
|---|
| Control Type | Knobs |
|---|
| Control Location | Front |
|---|
| Knob Color | Black |
|---|
| Center Element Burner Power | 18,000 BTU |
|---|
| Ventilation Type | N/A |
|---|
| Carton Height | 12.99 inches |
|---|
| Grate Details | Cast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish |
|---|
| Cutout Width Max | 35.25 |
|---|
| Carton Depth | 24.96 inches |
|---|
| Automatic Pan Detection | No |
|---|
| Combination Match With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC0A; WOS51EC7; WOS51EC7A; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC7 |
|---|
| Hot Surface Indicator Light | No |
|---|
| Cutout Depth Max | 20 |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC0A; WOS51EC7; WOS51EC7A; WOS52EM4; WOS52ES4M; WOS72EC0; WOS72EC7; WOS92EC7 |
|---|
| Installs Over Built-In Oven | Yes |
|---|
