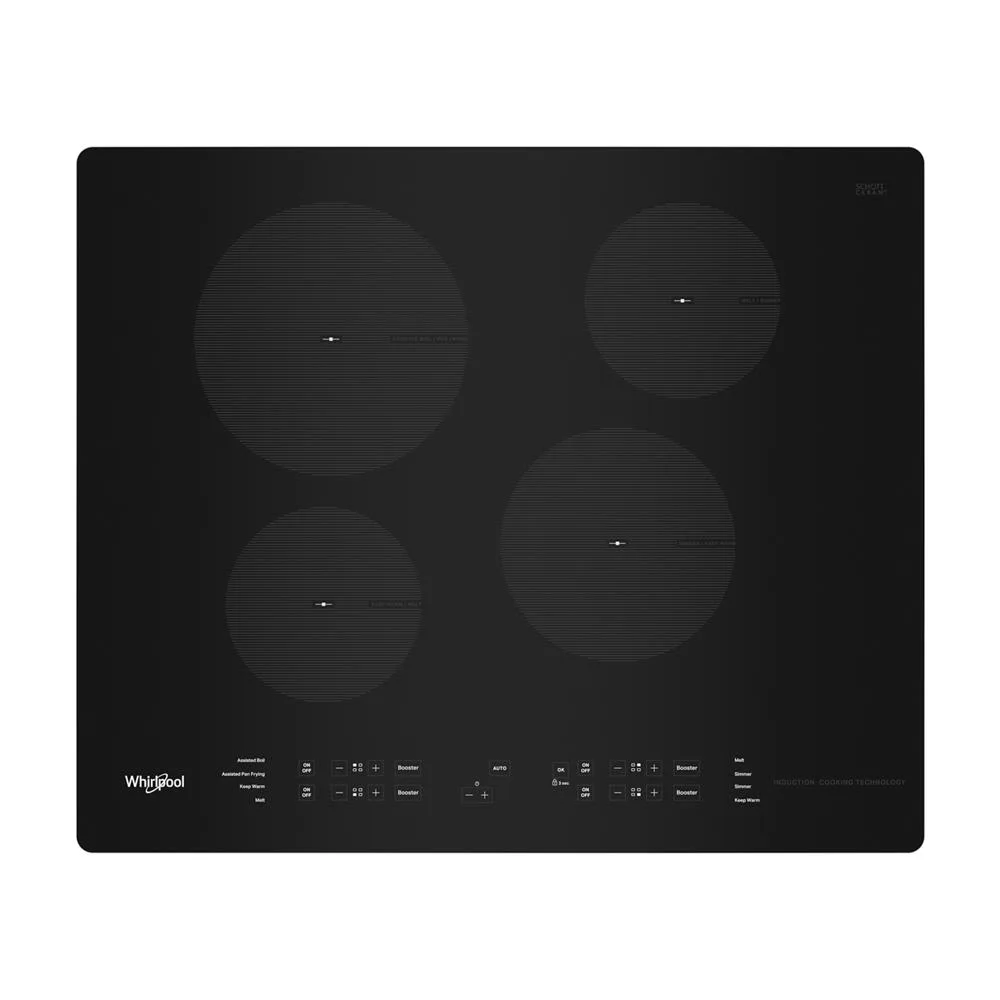

Product Description
Cook dinner quickly thanks to this small space induction cooktop that boils water fast and offers Quick Cleanup. Also, when using dedicated cookware, optional assisted cooking features allow you to use your time more efficiently prepping other dishes.
Features
- Fast Boil : Boil 12 cups of water on average 25% faster on Booster to help you get dinner to the table in less time.
- Quick Clean Up : Induction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.
- Quick Cleanup : Induction technology keeps the cooktop surrounding the elements cool, helping prevent baked-on messes. With fewer messes, you can clean the touch-activated controls on the cooktop as easily as you use them.
- Assisted Boil : This optional assisted cooking function notifies you with a helpful tone and flashing light when boiling water reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pot, part number W11463464, sold separately.
- Assisted Pan Frying : This optional assisted cooking function notifies you with a helpful tone and flashing light when oil reaches the right temperature to add food—so you can keep dinner prep moving and get dinner to the table fast. Requires an accessory pan, part number W11463466, sold separately.
- Keep Warm : Low heat keeps food ready to serve when other dishes aren't quite done, saving you time spent heating up food that's gotten cold.
- Compatible Cutout : Install your new induction cooktop into the same size cutout as our electric cooktops, making the switch nearly effortless.
- Control Lock Mode : Disable the control panel to avoid unintended use and make cleanup easy.
- Small Space Solution : Cook in multiple pans on a cooktop that packs in four elements without taking up your valuable counter space.
- Melt : Prevent burning delicate foods like chocolate or butter with a Melt setting that lets you focus on other tasks.
- Simmer : Maintain the right temperature for simmering soups and stews so you can let dishes cook while taking on the next step in meal prep.
- Optional Flush Installation : Choose Optional Flush Installation for a flush fit and seamless look. With flush installation the cooktop is placed into the countertop, rather than on top of the countertop for a more built-in appearance.
- Pan Detection : Easily see which element is activated with Pan Detection. A flashing symbol alerts you when a pan is removed or replaced on an active element.
- 30 Amp Installation : Properly install with a 30 amp hookup.
- Kitchen Timer : Keep track of cook times with an easy-to-clean Kitchen Timer that's integrated into the controls.
- Wall Oven Compatible : Install this cooktop on a countertop above a Whirlpool® Wall Oven or on its own for more flexibility.
- ADA compliant : This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Fuel Type | Electric Induction |
|---|
| Prop65 | Standard |
|---|
| LP Convertible | No |
|---|
| Gross Weight | 43 pounds |
|---|
| Left Front Element-Burner Power | 1200W/1600W Boost |
|---|
| Net Weight | 32 pounds |
|---|
| Infinite Heat Controls | No |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Cutout Depth Min | 20.5 |
|---|
| Automatic Pan Size Adjustment | Yes |
|---|
| Carton Width | 28.98 inches |
|---|
| Carton Depth | 25.28 inches |
|---|
| Right Front Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Control Location | Front |
|---|
| Cooktop Configuration | All Burners |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Control Type | Tap Touch |
|---|
| UL | Yes |
|---|
| Automatic Pan Detection | Yes |
|---|
| Cooktop Type | Standard |
|---|
| Carton Height | 7.64 inches |
|---|
| Left Rear Element-Burner Power | 2100W/ 3000W Boost |
|---|
| Number Of Cooking Element-Burners | 4 |
|---|
| Griddle Included | N/A |
|---|
| Left Rear Element-Burner Type | Round |
|---|
| Power Boost | Yes |
|---|
| Cooktop Element Style | Induction |
|---|
| Right Rear Element-Burner Type | Round |
|---|
| Ignition Type | Electronic Button |
|---|
| Cooktop Surface Material | Glass |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Right Rear Element-Burner Power | 1200W/ 1600W Boost |
|---|
| Combination Match With Oven | WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7 |
|---|
| Power Outage Compatible | No |
|---|
| Cutout Width Min | 20.5 |
|---|
| Left Rear Element-Burner Size | 8in. |
|---|
| Digital Display | Yes |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Power Cord Included | Yes |
|---|
| Downdraft Vent | No |
|---|
| Right Front Element-Burner Type | Round |
|---|
| Right Front Element-Burner Size | 7in. |
|---|
| Cooktop Surface Color | Black |
|---|
| Number Of Open Bays | N/A |
|---|
| 208V Compatible | Yes |
|---|
| Left Front Element-Burner Type | Round |
|---|
| Combinations With Oven | WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES5930L; WOES7027P; WOES7030P; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7 |
|---|
