Product Description
Performance Warming mode with 3 convenient temperature settings Special proof mode Automatic shut-off timer Concealed 450-watt heating element Spacious 2.2 cu.ft. cavity can hold and warm up to 28 dinner plates Design Premium touch control
Features
- Our warming drawer is the perfect combination of uncompromising performance, unique convenience features and elegant design
- Telescopic Rails : Featuring a telescoping ball-bearing design for smooth opening and closing that supports up to a 40 lbs. load.
- Proof Mode : Includes special proofing mode for preparing bread dough and more.
- Compatible with : installs vertically under Thermador speed, steam or wall ovens

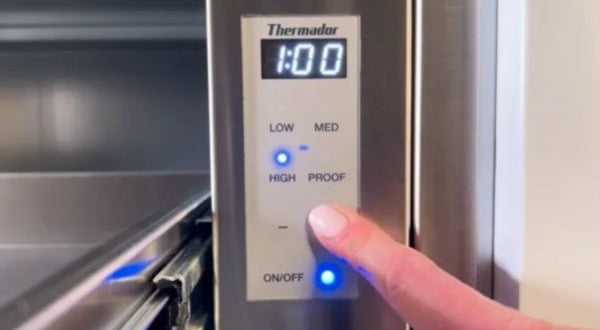

- Touch Control : A digital display to easily activate and monitor any one of the 4 temperature settings.
Specifications
| EAN code | 825225937463 |
|---|
| Required cutout size (HxWxD) | 9 1/4'' x 28 1/2'' x 23 1/2'' |
|---|
| Power output heating | 0 |
|---|
| UPC code | 825225937463 |
|---|
| Minimum height for installation (mm) | 235 |
|---|
| Additional Image 1 | https |
|---|
| Power cord length (cm) | 213.4 |
|---|
| Time-setting options | Start and Stop |
|---|
| Additional Image 2 | https |
|---|
| Product group | Platewarmer |
|---|
| Maximum number of espresso cups | 0 |
|---|
| Maximum width for installation (mm) | 724 |
|---|
| Frequency (Hz) | 60 |
|---|
| Gross weight | 80.000 |
|---|
| Brand | Thermador |
|---|
| Power Level | High, Low, Medium |
|---|
| SKU | WD30WC |
|---|
| Power Cord Length | 84'' |
|---|
| Gross weight (kg) | 36.3 |
|---|
| Product name / series name | Warming Drawer |
|---|
| Diameter reference plates (cm) | 26 |
|---|
| Maximum number of reference plates | 27 |
|---|
| Maximum height for installation (mm) | 235 |
|---|
| Type of control | Touch Control |
|---|
| Height of the packed product (mm) | 432 |
|---|
| Construction type | Built-in |
|---|
| Width of the packed product (mm) | 787 |
|---|
| Product packaging dimensions (HxWxD) | 14 1/2'' x 35 5/8'' x 30 1/2'' |
|---|
| Depth for installation (mm) | 597 |
|---|
| Volts (V) | 120 |
|---|
| Interior light | No |
|---|
| Net weight (kg) | 32.5 |
|---|
| Overall appliance dimensions (HxWxD) | 9 7/16'' x 29 3/4'' x 24 1/2'' |
|---|
| Type of control | Electronic |
|---|
| Internal article number | WD30WC |
|---|
| Minimum width for installation (mm) | 724 |
|---|
| Plug type | 120V-3 prong |
|---|
| Depth of the packed product (mm) | 908 |
|---|
| Net weight | 72.000 |
|---|
| Current (A) | 15 |
|---|
| Safety device | Safety Switch-off Function Oven |
|---|
| Product color | Stainless steel |
|---|
