Product Description

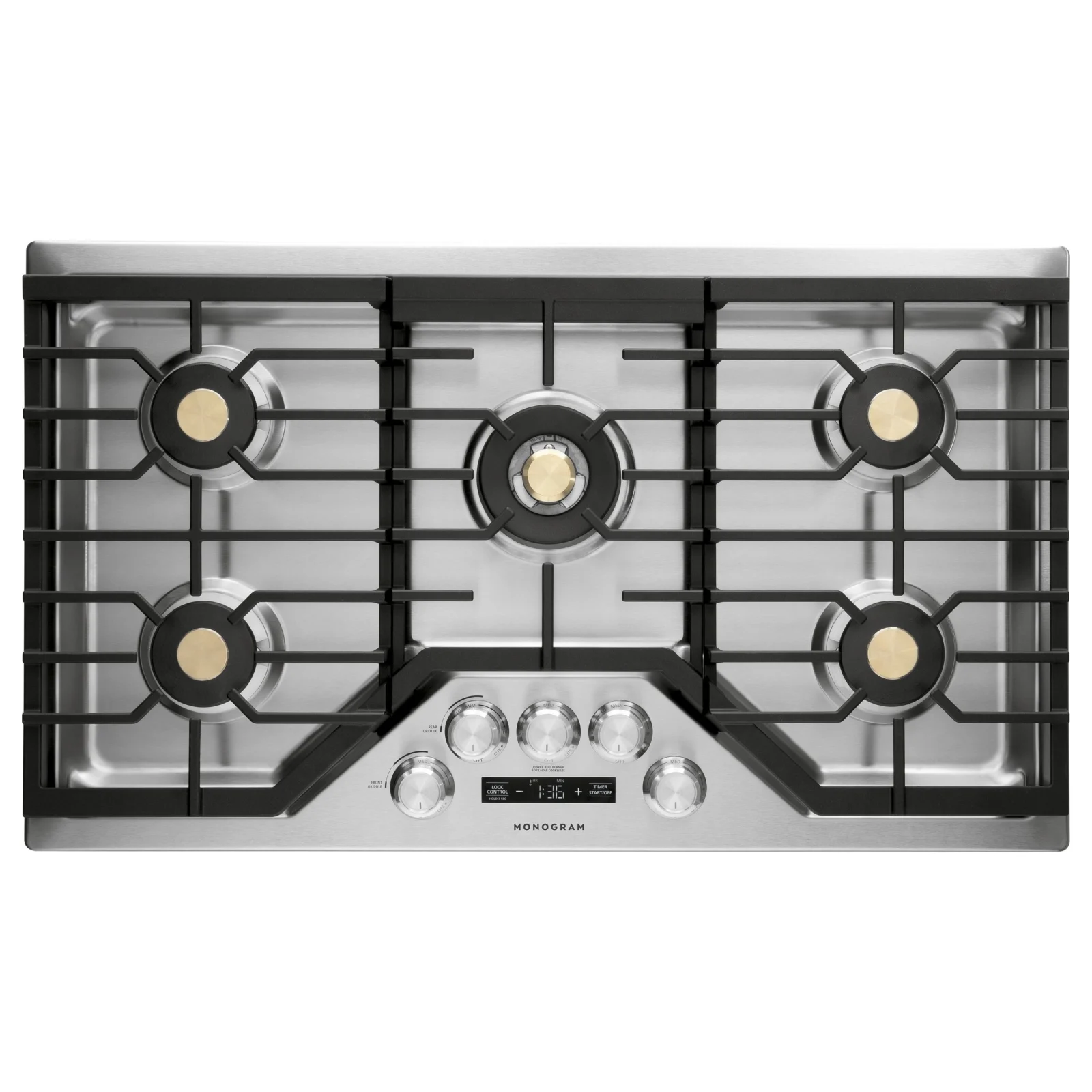

Monogram 36" Deep-Recessed Gas Cooktop
Features
- Precision knobs : With embedded sapphire glass illuminate each knob making it easy to view and select heat settings
- Brass burners accents : For the ultimate in elegant styling
- Electronic kitchen timer : Built in to the cooktop for meal preparation
- Dual-flame stacked burners : Provide complete 140F simmer-to-rapid-boil flexibility on all burners; the burners are sealed to the cooktop for easy cleaning
- Tri-ring burner : Versatile burner creates 20,000 BTUs of intense heat, perfect for searing, frying and sautéing
- High-output cooking : Delivered by a 20,000 BTU tri-ring burner, total of 62,000 BTUs
- Remote connectivity via WiFi : Allows you to wirelessly control gas cooktop functions from your smartphone
- Bluetooth connectivity : Bluetooth technology pairs your Monogram gas cooktop and hood for proper cooking ventilation
- Heavy-duty, cast-iron griddle : Designed to fit the Monogram gas cooktop
Specifications
| Cooktop Control Features | Control Lock Capability, Kitchen timer |
|---|
| Color Appearance | Stainless Steel |
|---|
| Overall Height | 7.875 in |
|---|
| Overall Depth | 21 in |
|---|
| Cooktop Surface | Stainless Steel |
|---|
| App Filter - WiFi Connect | Built-In |
|---|
| Burner - Left Front | 10,000 BTU Dual Brass Center |
|---|
| Cooktop Cleaning | Included |
|---|
| Burner - Center | 20,000 BTU Tri-ring (Brass Cap) |
|---|
| Dual Flame Stacked Burners | 5 |
|---|
| Extra Low Simmer | 5 |
|---|
| WiFi Connect | Built-In |
|---|
| Volts/Hertz/Amps | 120V; 60Hz; 5.0A |
|---|
| Valves (Degree of Turn) | 270 |
|---|
| Griddle | JXGRIDL236 (Included) |
|---|
| Control Knobs | Precision Knobs with Embedded Sapphire Glass |
|---|
| Burner - Right Rear | 10,000 BTU Dual Brass Center |
|---|
| Configuration | 5 Sealed Cooktop Burners |
|---|
| Warranty Notes | See written warranty for full details |
|---|
| Cooktop Burner Grate Material | Cast-Iron; Porcelainized |
|---|
| Burner Indicator Light | Yes - in Knob |
|---|
| Cooktop Type | Continuous Grates |
|---|
| Cooktop Burner Grate Features | Continuous Grates |
|---|
| Parts Warranty | Limited 2-year entire appliance |
|---|
| Control Type | Glass Touch Controls |
|---|
| Overall Width | 36 in |
|---|
| Conversion Kit | Included - Nat. Gas to LP |
|---|
| Burner - Left Rear | 10,000 BTU Dual Brass Center |
|---|
| Control Location | Front Center |
|---|
| Fuel Type | Natural Gas (factory set) |
|---|
| 140 Deg. Simmer Burner | 5 |
|---|
| Approximate Shipping Weight | 65 lb |
|---|
| Cutout Width (in) | 33-7/8 |
|---|
| Cabinet Width | 36 in |
|---|
| Labor Warranty | Limited 2-year entire appliance |
|---|
| Cooktop Burner Type | 5 Sealed |
|---|
| Burner - Right Front | 12,000 BTU Dual Brass Center |
|---|
| Ignition System | Direct Electronic Ignition |
|---|
| Automatic Re-Ignition | Yes |
|---|
| Electrical Requirements | 120V; 60Hz; 5.0A |
|---|
| Net Weight | 59 lb |
|---|
| Installation | Over Advantium Built-In 120V, Over Single Wall Oven (except Single-Double), Over Warming Drawer |
|---|
| Cutout Depth (in) | 19-1/8 |
|---|
